communication modules

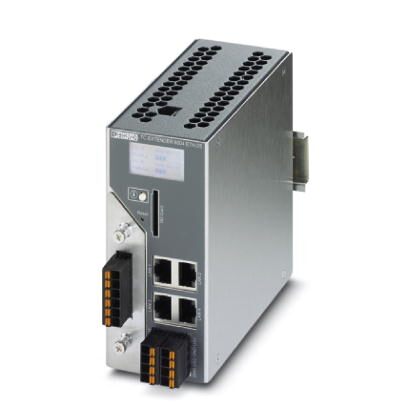

Managed Ethernet extender - point-to-point - line and ring structures - data rates up to 30 Mbps - distances of up to 20 km on in-house copper cables - replaceable surge protection - 2 SHDSL ports - 4-port switch - diagnostics via display and Ethernet

Second generation: Unmanaged Ethernet extender for point-to-point connections - line and ring structures - data rates up to 30 Mbps - distances of up to 20 km on in-house copper cables - diagnostics via USB and LEDs - 2 SHDSL ports - 1 LAN port

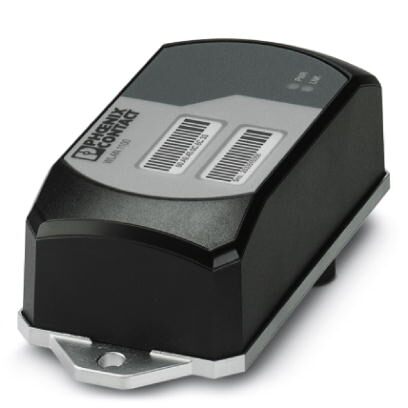

WLAN access point - client for USA and Canada - with two internal antennas for single-hole mounting - IP54 - WLAN 802.11 a - b - g - n - frequency: 2.4 GHz - 5 GHz - connections: COMBICON 9 ... 32 V DC - RJ45: for LAN - web - http/https - Command Line Interface

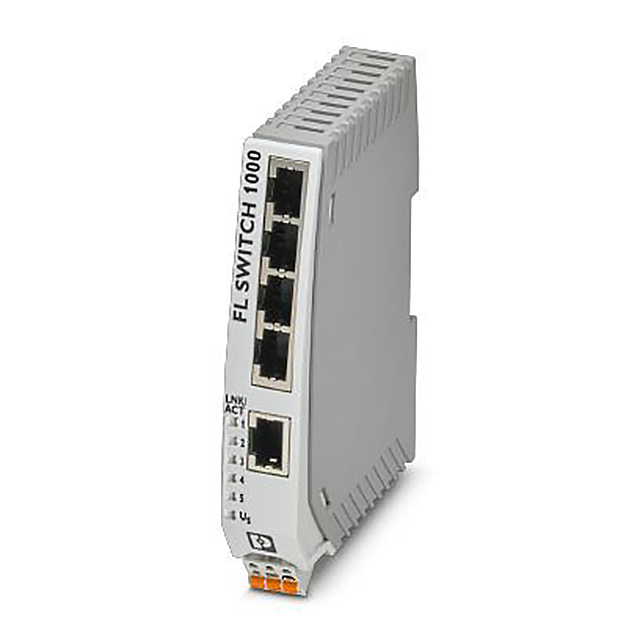

Narrow Ethernet Switch - 5 RJ45 ports with 10/100 Mbps on all Ports - 9 to 32VDC Input - IP30 - DIN Rail Mount.

Radioline - 900 MHz wireless transceiver with RS-232/485 interface - can be extended with I/O modules - RSMA (female) antenna connection - point-to-point - star - and mesh networks up to 250 stations - range of up to 32 km (line of sight) - use in North America

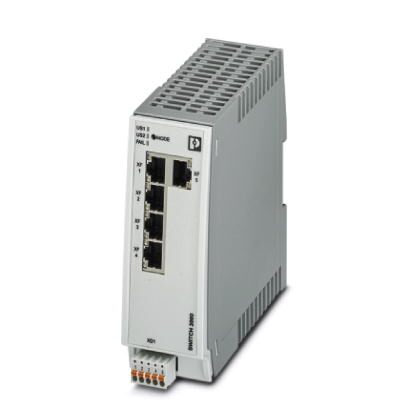

Managed Switch 2000 - 5 RJ45 ports 10/100 Mbps - degree of protection: IP20 - PROFINET Conformance-Class B
