Audio-/Videoverarbeitung

Video Picture Enhancer 14-Pin DMP

Integrated Circuit TV Vertical Deflection Output Circuit 9=lesd SIP Vcc=50V Max

Integrated Circuit Vertical/horizontal Sync Separator 18-lead DIP Vcc=12V

Ic - Vertical Deflection Output Circuit Vcc = 24V Typical 7-lead SIP

Integrated Circuit TV Sound Channel 1w 16 Lead DIP

Integrated Circuit TV Horizontal/vertical Processor 16-lead DIP W/tab Vcc=12V Typ

Integrated Circuit TV Luminance Processor 16 Lead DIP

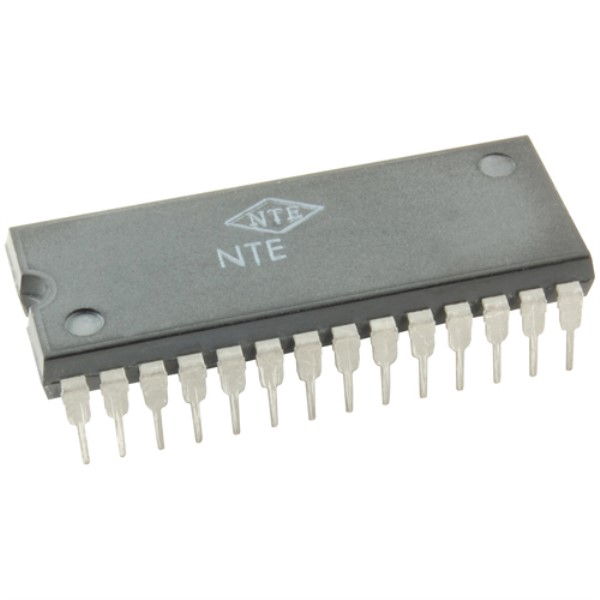

Integrated Circuit TV Video If/sound If/audio Driver For Fet Tuner 24-lead DIP Vcc=15V

Integrated Circuit FM Stereo Transmitter 18-lead DIP Vcc=1.25V Typ

Ic - Vertical Deflection Power AMP For Monitors Vp1+2 = 25V Typical 9-lead SIP
