D2425 by sensata / crydom

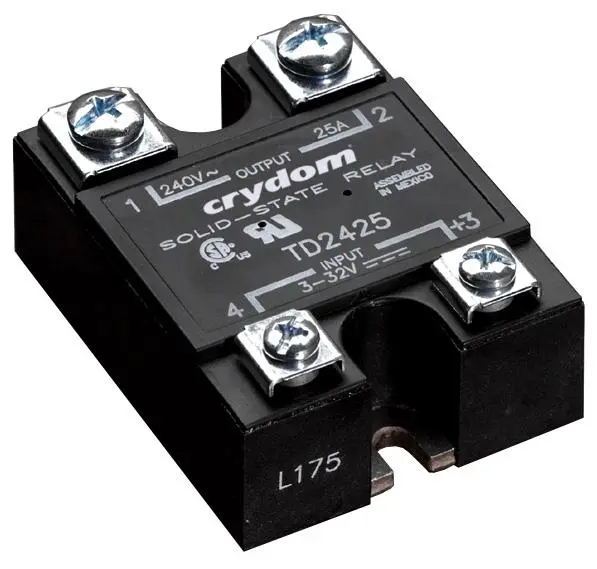

Image is representational - see mfr. specs

D2425

Sensata / Crydom

The D2425- is a solid-state relay series 1 with SCR output for heavy industrial loads. Input control voltage range is 3-32 VDC ...

+ see all

Datenblatt Zubehör Notify Me

RoHS-konform
EACH Verpackung
Certificate of Compliance Guarantee
Beschreibung +
The D2425- is a solid-state relay series 1 with SCR output for heavy industrial loads. Input control voltage range is 3-32 VDC. Operating voltage is 24-280 VAC and the max load current is 25 A. Series 1 relay has redesigned housing with anti-rotation barriers. I/O isolation voltage is 4000 Vrms. Switching type: zero voltage turn-on. Mounting type: panel mount.
Search Keywords: D2425
Spezifizierung +
  • Product Attribute
    Attribute Value Select Attribute
  • Lieferant:
    Sensata / Crydom
  • Artikelnummer:
    D2425
  • Maßeinheit:
    Per Each
  • RoHS (Beschränkung gefährlicher Stoffe):
    Yes
  • HTS:
    8536490080
  • COO:
    MX
  • ECCN:
    EAR99
  • Standardmenge: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    20
  • Output Type:
    AC
  • Maximum Output Voltage:
    280(RMS) V
  • Maximum Output Current:
    25(RMS) A
  • Output Device:
    SCR
  • Input Type:
    DC
  • Input Voltage:
    32 V
  • Mounting:
    Screw
  • Circuit Arrangement:
    1 Form A
  • Dimension:
    58.4 x 45.7 x 23 mm
Tools/3D Models +

Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
Vorrätig: 505
Sofort versenden
Bestellt:
360   Kan verzenden 4/6/26
800   Kan verzenden 2/7/26
12 Weeks Kan verzenden 28/7/26
In den Einkaufswagen
PRICE (EUR)
MENGE
Stückpreis
1
€56.26
5
€40.48
20
€39.70
40
€39.59
60
€39.49
100
€39.39
260 +
€39.30
Standardverpackung des Lieferanten
Click for Quote
Anmeldung um Sonderpreise freizuschalten

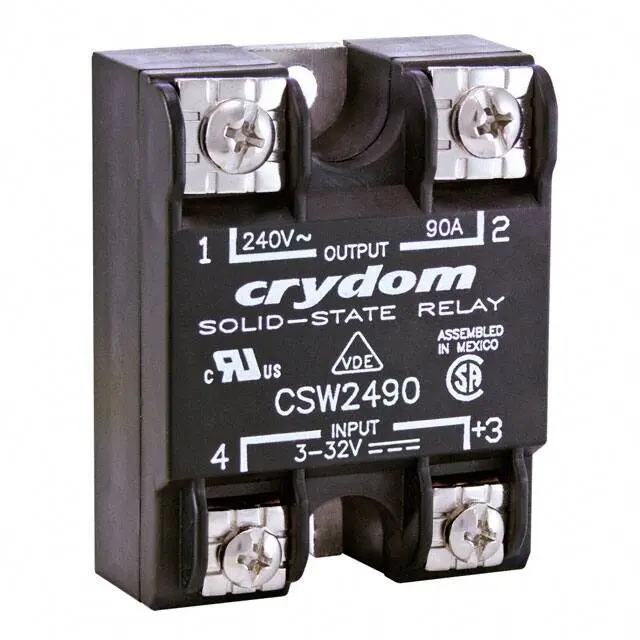

Older Equivalent
CSW2425
CSW2425
Produkt anzeigen
Solid State Relay - 3-32 VDC Control - 25 A Max Load - 24-280 VA
Possible Replacement
alternative Part Image
SSR - DC Control - Control Voltage 3-32VDC/12mA - Output Voltage 24-280VAC - Max Load Current 25A - 1 Form A - Panel Mount - Screw Terminal
Vorrätig:
9
MINIMALE BESTELLING:
1
