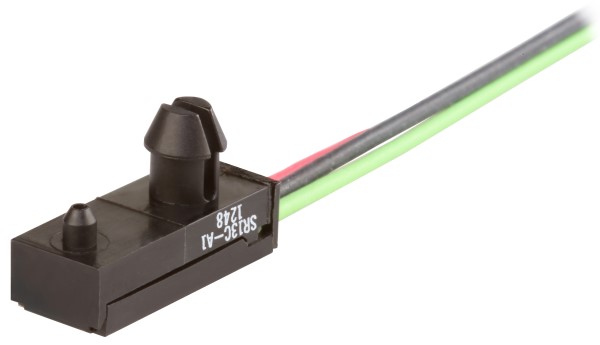

SR13C-A1 by honeywell
Image is representational - see mfr. specs

SR13C-A1

Honeywell

Honeywell Hall-effect Digital Position Sensor: SR13 Series, Snap-in housing with 3 x 152,4 mm [6.0 in] color-coded 24AWG wires ...

+ see all

产品说明书 附件 Notify Me

符合 RoHS 规定
BAG 包装
Certificate of Compliance Guarantee
描述 +
Honeywell Hall-effect Digital Position Sensor: SR13 Series, Snap-in housing with 3 x 152,4 mm [6.0 in] color-coded 24AWG wires, Sinking output, Unipolar magnetics, Medium sensitivity, 3.8 to 30 Vdc supply voltage
Product Highlights:
  • Digital current sinking output
  • Quad-Hall design eliminates stress effects
  • Temperature compensated magnetics
  • High output capability
Search Keywords: SR13CA1
规格 +
  • Product Attribute
    Attribute Value Select Attribute
  • 供应商:
    Honeywell
  • 部件编号:
    SR13C-A1
  • 计量单位:
    Per Each
  • RoHS:
    Yes
  • HTS:
    85437000
  • COO:
    MX
  • ECCN:
    EAR99
  • 供应商标准包装: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    20
  • Magnetic Type:
    Unipolar
  • Maximum Output Current:
    20 mA
  • Mounting:
    Snap In
  • Output Type:
    Sink
  • Output Driver:
    NPN
  • Product Type:
    Digital
  • Dimension:
    7.6 x 10.7 x 20.3 mm
  • Typical Operating Supply Voltage:
    3.8 to 30 V
  • Termination Type:
    Wire Leads
  • Operating Temperature:
    -40 to 150 °C
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
有存货: 100
可立即发货
已订购:
260   可以发货 9/7/26
Minimum Order Quantity:
20
多个:
20
20 Weeks 可以发货 10/5/26
添加到购物车
PRICE (USD)
数量
Unit Price
20
$12.64
40
$12.14
60
$11.70
100
$11.40
260
$11.11
500
$11.08
1,000 +
$11.06
