描述
+

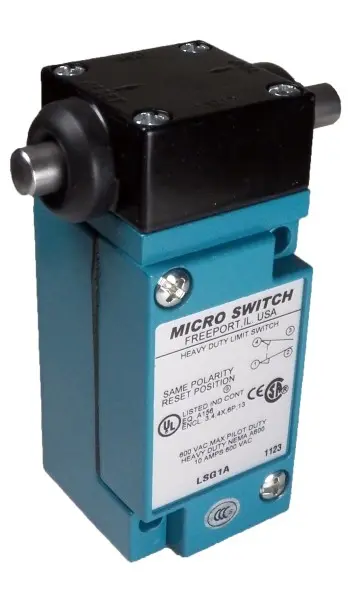

MICRO SWITCH™ Heavy-Duty Limit Switches: HDLS Series, Epoxy-Coated Zinc Housing, Maintained, Side Pin Plunger, Ø 9.47 mm [0.38 in], Steel Plunger, 1NC 1NO Single Pole Double Throw (SPDT) Snap Action, Double Break, AC 15, A600; DC 13, R300, 0.5 in - 14 NPT Conduit, Plug-In, Operating Temperature: -1 °C to 93 °C [30 °F to 200 °F], IP 65/66/67, NEMA 1, 3, 4, 4X, 6, 6P, 12, and 13, Agency Approvals: UL, CSA, CE, CCC
产品亮点:
- Wide variety of operating heads
- Field adjustable operating modes, for reduced inventory
- Convenience of on-the-spot adjustment instructions
- Complete choice of circuitry and electrical rating options
- Plug-in and non plug-in versions have identical operating characteristics and are dimensionally interchangeable
- Manifold (rear-wire) version
- Explosion-proof versions
- Low temperature versions to -40 C (-40 F)
- Captive head and body screws
- Designed to withstand seismic shock
- Stainless steel (NEMA 4X) versions
- Pre-leaded cable or pre-wired connector types
- Epoxy filled wash down (NEMA 6P) types
- Completely fluorocarbon (FC) sealed versions
潜在应用:
- Machine Tools
- Material Handling
- Packaging
- Presses
- Pulp and Paper
- Welding
- PLC Interface
搜索关键词: LSG1A
规格
+
-
产品属性属性值 选择属性
-
供应商:Honeywell
-
部件编号:LSG1A
-
计量单位:每 件
-
RoHS:是
-
HTS:85365007
-
COO:MX
-
ECCN:EAR99
-
供应商标准包装:
1 -
类型:Heavy Duty
-
致动器样式:Side Plunger
-
极-位配置:SPDT
-
开关配置:N.O./N.C.
-
操作力:44.5 N
-
尺寸:76.2 x 44.5 x 101.7 mm
-
最大电流额定值:10@24VDC A
-
端子类型:Conduit
-
NEMA外壳防护标准等级:1, 3, 4, 4X, 6, 6P, 12, 13
-
本体方向:Right Angle
工具/3D模型
+
-
電子工程工具箱
产品指南
+
数据表
元件时刻 Extended Cut: Honeywell Hazard Switches
Learn more about Honeywell Switches for Conveyor Applications
Frequently Asked Questions
Is LSG1A RoHS compliant?
Yes, LSG1A is RoHS compliant.
What is the lead time for LSG1A?
The standard lead time for LSG1A is approximately 29 days. In-stock quantities ship from OnlineComponents.com.
