Available Replacements
Possible Replacement
1-2600038-3
1-2600038-3

TE Connectivity / Deutsch Automotive

in magazzino: 300

L'ORDINE MINIMO: 25

VIEW PRODUCT

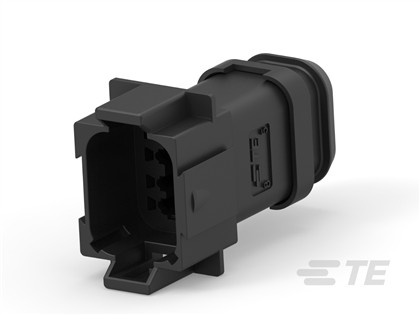

DT04-08PB-CE01 by te connectivity / deutsch automotive
Image is representational - see mfr. specs

DT04-08PB-CE01

TE Connectivity / Deutsch Automotive

REC, 8P, BLK, E, CAP, B

+ see all

Scheda dati ACCESSORI Notify Me

RoHS Compliant
Pack Imballaggio
Certificate of Compliance Guarantee
Descrizione +
REC, 8P, BLK, E, CAP, B
Search Keywords: DT0408PBCE01
Specifiche +
  • Product Attribute
    Attribute Value Select Attribute
  • fornitore:
    TE Connectivity / Deutsch Automotive
  • Codice componente:
    DT04-08PB-CE01
  • Unità di misura:
    per Each
  • RoHS :
    Yes
  • HTS:
    8538906000
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Connector Position Assurance Capable:
    No
  • Connector & Housing Type:
    Housing for Male Terminals
  • Agency/Standard:
    SAE J2030
  • Packaging Quantity:
    300
  • Strain Relief:
    Add By Accessory
  • Number of Rows:
    2
  • Terminal Position Assurance:
    Yes
  • Primary Product Color:
    Black
  • Sealable:
    Yes
  • Connector System:
    Wire-to-Wire
  • Packaging Method:
    Box
  • Serviceable:
    Yes
  • UL Flammability Rating:
    12mm Flame Test per Standard UL-94
  • Contact Current Rating (Max):
    13 A
  • Blank Cavity Position:
    0
  • Primary Locking Feature:
    Integrated in Housing
  • Number of Positions:
    8
  • Cable Exit Angle:
    180°
  • Mating Pin Diameter:
    .063 in, 1.59 mm
  • Operating Voltage:
    250 VAC, 250 VDC
  • Nominal Voltage Architecture:
    12 V, 24 V, 49 V
  • Operating Temperature Range:
    -55 – 125 °C, -67 – 257 °F
  • Product Length:
    1.848 in, 46.94 mm
  • Operating Temperature (Max):
    125 °C, 257 °F
  • Product Width:
    1.435 in, 36.45 mm
  • Degree of Protection:
    IP68 , IP6K9K
  • Row-to-Row Spacing:
    .175 in, 4.45 mm
  • Centerline (Pitch):
    .359 in, 9.12 mm
  • Connector & Contact Terminates To:
    Wire & Cable
  • Circuit Application:
    Power & Signal
  • Contact Type:
    Pin
  • Housing Material:
    PA GF
  • Connector Mounting Type:
    Cable Mount (Free-Hanging)
  • Connector Shape:
    Rectangular
  • Connector Height:
    .94 in, 23.88 mm
  • Mating Alignment Type:
    Keyed
  • Contact Size:
    Size 16
  • Mating Alignment:
    With
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
in magazzino: 418
Spedizione oggi, if you order in
Minimum Order Quantity:
10
13 Weeks Può spedire 27/8/26
Aggiungi al carrello
PRICE (EUR)
QTÀ
Prezzo unitario
10
€4.41
50
€3.69
100
€3.66
250
€3.40
500
€3.23
1.000
€3.07
2.500
€2.89
5.000 +
€2.88
