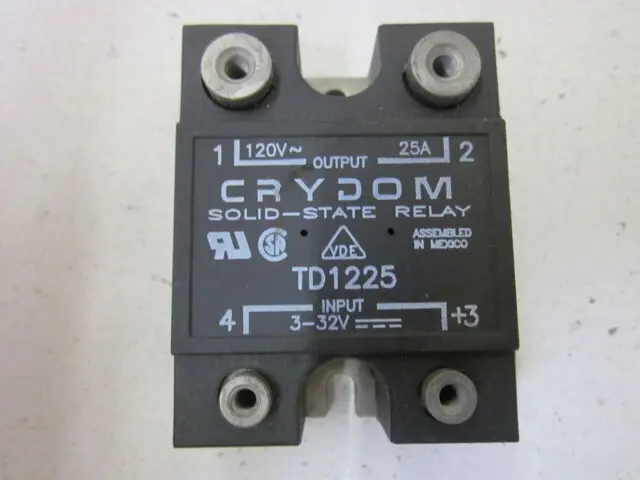

D1225
Sensata / Crydom
Solid State Relay - 3-32 VDC Control - 25 A Max Load - 24-140 VAC Operating - Zero Voltage - Screw Termination - Panel Mount.
Scheda dati ACCESSORI Notify Me
RoHS Compliant
EACH Imballaggio
Certificate of Compliance Guarantee
Descrizione
+
Solid State Relay - 3-32 VDC Control - 25 A Max Load - 24-140 VAC Operating - Zero Voltage - Screw Termination - Panel Mount.
Search Keywords: D1225
Specifiche
+
-
Product AttributeAttribute Value Select Attribute
-
fornitore:Sensata / Crydom
-
Codice componente:D1225
-
Unità di misura:per Each
-
RoHS :Yes
-
HTS:8536490080
-
COO:MX
-
ECCN:EAR99
-
Supplier Standard Pack:
20 -
Output Type:AC
-
Maximum Output Voltage:280(RMS) V
-
Maximum Output Current:25(RMS) A
-
Output Device:SCR
-
Input Type:DC
-
Input Voltage:32 V
-
Mounting:Screw
-
Circuit Arrangement:1 Form A
-
Dimension:58.4 x 45.7 x 23 mm
