CLG-150-12A by mean well
Image is representational - see mfr. specs

CLG-150-12A

MEAN WELL

AC/DC LED Power Supply - Const Curr - 132W - Adj: 12 Vdc @ 11,000mA - Dim: No

+ see all

Scheda dati ACCESSORI Notify Me

RoHS Compliant
Discontinued
Imballaggio
Certificate of Compliance Guarantee
Descrizione +
AC/DC LED Power Supply - Const Curr - 132W - Adj: 12 Vdc @ 11,000mA - Dim: No
Search Keywords: CLG15012A
Specifiche +
  • Product Attribute
    Attribute Value Select Attribute
  • fornitore:
    MEAN WELL
  • Codice componente:
    CLG-150-12A
  • Unità di misura:
    per Each
  • RoHS :
    Yes
  • HTS:
    8504409520
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Input/Output Type:
    AC/DC
  • Style:
    Enclosed
  • Type:
    Constant Current
  • Output Type:
    Adjustable
  • Dimming:
    No
  • Maximum Output Power:
    132 W
  • Output Voltage Range:
    9.0 to 12.0 Vdc
  • Maximum Output Current:
    11,000 mA (11.0 A)
  • Minimum AC Input Voltage:
    90
  • Maximum AC Input Voltage:
    295
  • Minimum DC Input Voltage:
    127
  • Maximum DC Input Voltage:
    417
  • Termination Style:
    Wire Leads
  • Input Connector Type:
    Stripped and Tinned
  • Output Connector Type:
    Stripped and Tinned
  • Operating Temperature:
    -30 to 70 °C
  • Safety Agency Approvals:
    CB, CCC, CE, cRUus, PSE, TUV
  • IEC Class:
    None
  • SELV:
    No
  • LPS:
    No
  • Warranty:
    3 Years
  • Family:
    CLG-150
Tools/3D Models +
risorse +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
in magazzino: 8
Spedizione oggi, if you order in
Aggiungi al carrello
PRICE (EUR)
QTÀ
Prezzo unitario
1
€157.80
10
€155.44
25
€153.10
50 +
€150.81
Click for Quote
Login per sbloccare prezzi speciali
Tariffs may apply for U.S. shipments
Possible Replacement
alternative Part Image

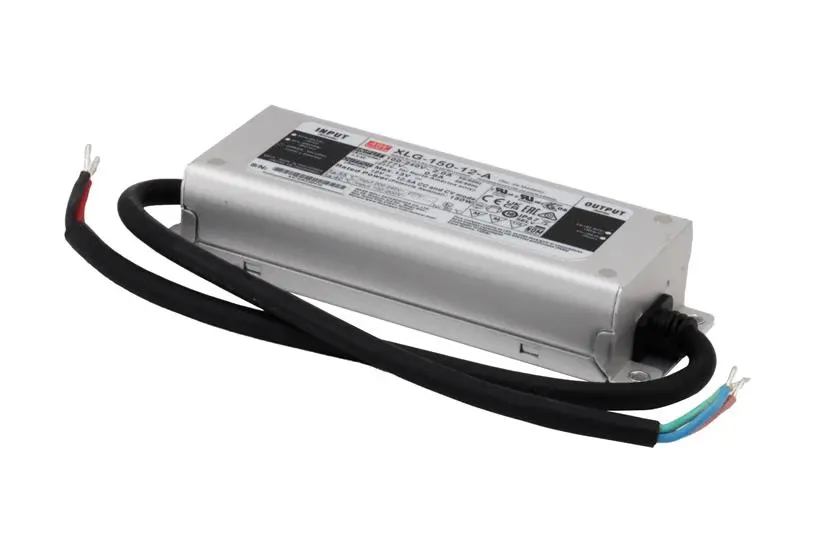

Constant Power Mode LED Driver - 12VDC - 6.5 to 12.5A - Built-In potentiometer Current Adjust - IP67
in magazzino:
32
L'ORDINE MINIMO:
1
