1SE1-3 by honeywell

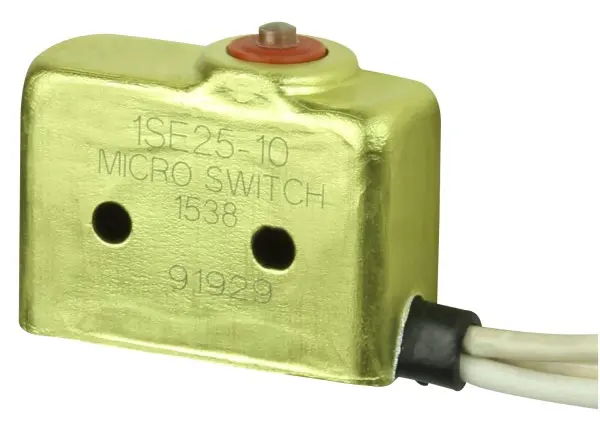

Image is representational - see mfr. specs

1SE1-3

Honeywell

MICRO SWITCH™ Miniature Environmentally Sealed Basic Switches: SE Series, Single Pole Double Throw (SPDT), 5 A at 250 Vac, Sta ...

+ see all

Scheda dati ACCESSORI Notify Me

RoHS Compliant
Imballaggio
Certificate of Compliance Guarantee
Descrizione +
MICRO SWITCH™ Miniature Environmentally Sealed Basic Switches: SE Series, Single Pole Double Throw (SPDT), 5 A at 250 Vac, Stainless Steel Pin Plunger, (3) 914 mm [36 in] Lead Wire Termination (20 Gage), -53 °C to 105 °C [-65 °F to 221 °F] Temperature Range
Product Highlights:
  • Choice of actuation
  • Temperature tolerance to 105 °C [221 °F]
  • High temperature construction for use to 149 °C [300 °F]
  • Watertight seal per MIL-PRF-8805, enclosure design symbol 3
  • Very small package size
  • Power load switching capability to 7 A
Search Keywords: 1SE13
Specifiche +
  • Product Attribute
    Attribute Value Select Attribute
  • fornitore:
    Honeywell
  • Codice componente:
    1SE1-3
  • Unità di misura:
    per Each
  • RoHS :
    Yes
  • HTS:
    85365000
  • COO:
    US
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Mounting:
    Through Hole
  • Pole Throw Configuration:
    SPDT
  • Switch Configuration:
    N.O./N.C.
  • Actuator Material/Style:
    Steel/Plunger
  • Contact Rating @ Voltage:
    5@250VAC 30VDC A
  • Maximum Movement Differential:
    0.1 mm
  • Operating Force:
    4.73 N
  • Termination Style:
    Wire Lead
  • Dimension:
    22.25 x 8.79 x 18.92 mm
  • Body Orientation:
    Straight
  • IP Rating:
    N/A
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
in magazzino: 88
Può essere spedito immediatamente
18 Weeks Può spedire 21/9/26
Aggiungi al carrello
PRICE (EUR)
QTÀ
Prezzo unitario
1
€100.71
5
€98.74
10
€82.17
20
€81.96
50
€81.76
100 +
€81.56
Click for Quote
Login per sbloccare prezzi speciali
