MDM-25PH003L by itt cannon

MDM-25PH003L

ITT CANNON

Conn Micro-D PIN 25 POS 0.64mm Crimp ST Cable Mount 25 Terminal 1 Port

+ see all

Fiche technique ACCESSOIRES Notify Me

RoHS Compliant
Emballage
Certificate of Compliance Guarantee
Description +
Conn Micro-D PIN 25 POS 0.64mm Crimp ST Cable Mount 25 Terminal 1 Port
Search Keywords: MDM25PH003L
spécification +
  • Product Attribute
    Attribute Value Select Attribute
  • fournisseur:
    ITT CANNON
  • Référence:
    MDM-25PH003L
  • Unité de mesure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8544429090
  • COO:
    DE
  • ECCN:
    EAR99
  • Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Vibration:
    20Gs, 10-2000 Hz. 12 hours
  • Contact Material:
    gold plated copper alloy
  • Hardware:
    Jackscrew (low profile)
  • Shell Material:
    Aluminum
  • Disclaimer:
    Our facility is not currently certified by the DLA and this product is not covered by the QPL/QML.
  • Arrangement:
    25 Contact
  • Coupling:
    Jackscrew Coupling
  • Insulator Material:
    contact size 9 to100 = liquid crystalline polymer, contact arrangements 7C2 or 24C4 = Diallyl phthalate
  • Termination Type:
    18" Min, M16874/4 #26AWG, Colored Code
  • Insulator Resistance:
    5000 megohms min.
  • Moisture Resistance:
    Insulator resistance > 100 megohms
  • Shell Finish:
    Yellow Chromate/Cadmium over Nickel
  • Contact Resistance:
    8 milliohms max.
  • Dielectric Withstanding Voltage:
    600 VAC at sea level 150 VAC at 70,00 altitude
  • Saltspray:
    48 hours
  • Thermal Shock:
    -55°/+125 °
  • Current Rating:
    3 A max.
  • Durability Rating:
    500 cycles of mating and unmating, 500 CPH max.
  • Gender:
    Pin
  • Series:
    Micro "D" Metal Shell
  • Contact Type:
    Crimp
  • Physical Shock:
    50 Gs, 3 axes, 6 milisecond duration sawtooth pulse
Tools/3D Models +
ressources +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
en stock: 32
Expédition aujourd'hui, if you order in
Quantité minimale de commande pour qté en rupture de stock:
3
18 Weeks Peut expédier 9/9/26
Ajouter au panier
PRICE (EUR)
QTÉ
Prix unitaire
1
€227.16
3
€209.88
5
€203.25
8
€202.75
10 +
€176.90
Click for Quote
Se connecter pour débloquer des tarifs spéciaux

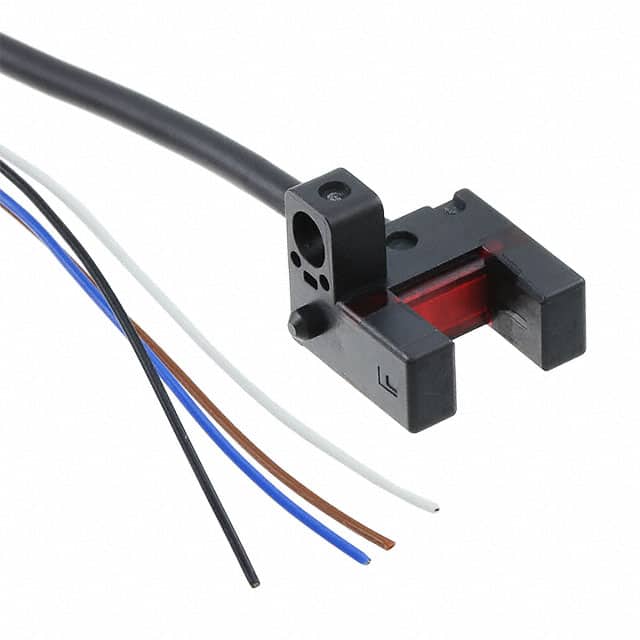

CUSTOMERS ALSO BOUGHT
