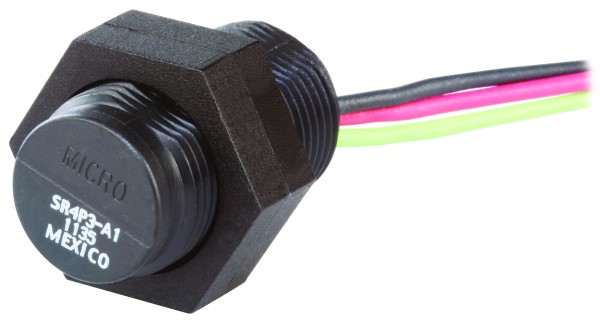

Image is representational - see mfr. specs

honeywell
Distributeur agréé

SR4P3-A1

Honeywell

Honeywell Value-added Hall-effect Digital Position Sensors: SR4 Series, Magnetoresistive digital position sensor, 14 mm thread ...

+ see all

Fiche technique ACCESSOIRES Notify Me

RoHS Compliant

Emballage

Certificate of Compliance Guarantee

Description +

Honeywell Value-added Hall-effect Digital Position Sensors: SR4 Series, Magnetoresistive digital position sensor, 14 mm threaded cylindrical plastic housing, 152,4 mm [6 in] lead wires, Current sinking output, 3.8 to 30 Vdc supply voltage

Product Highlights:

Current sinking ouput
Rugged, Epoxy filled 14mm threaded plastic housing NEMA 3, 3R, 3S, 4, 4X, 12and 13 requirements
24 AWG, 152,4 mm [6 in] stranded leadwires, color coded and XLPE insulated wires
Adjustable mounting

Potential Applications:

Search Keywords: SR4P3A1

spécification +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
fournisseur:

Honeywell
Référence:

SR4P3-A1
Unité de mesure:

Per Each
RoHS:

Yes
HTS:

85423919
COO:

MX
ECCN:

EAR99
Référence:

20
Magnetic Type:

Bipolar
Maximum Output Current:

20 mA
Mounting:

Panel
Output Type:

Sink
Output Driver:

NPN
Product Type:

Digital
Dimension:

25.4mm x 12.4mm dia
Typical Operating Supply Voltage:

6 to 24 V
Termination Type:

Wire Leads
Operating Temperature:

-40 to 85 °C
