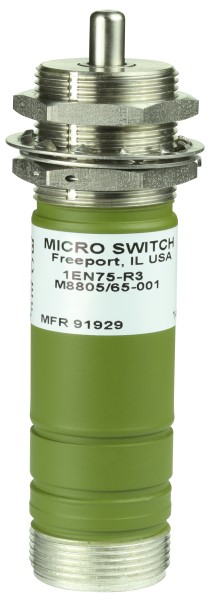

1EN75-R3 by honeywell
Image is representational - see mfr. specs

1EN75-R3

Honeywell

MICRO SWITCH™ Environmentally Sealed Limit Switches: EN Series, Double Pole Double Throw (DPDT), 5 A Resistive at 28 Vdc, Stai ...

+ see all

Fiche technique ACCESSOIRES Notify Me

Non-Compliant
Emballage
Certificate of Compliance Guarantee
Description +
MICRO SWITCH™ Environmentally Sealed Limit Switches: EN Series, Double Pole Double Throw (DPDT), 5 A Resistive at 28 Vdc, Stainless Steel Enclosure Finished with Green Epoxy Based Enamel, Pin Plunger Actuator, 1-20 UNEF Diameter Threaded Bushing, Shock Resistant Construction, Special Bottom Exit Receptacle Connector Termination, Military Standard No. (M8805/65-001) on Nameplate
Product Highlights:
  • Meets or exceeds mechanical and electrical life as defined in MIL-S-8805
  • Top plunger and roller plunger actuators have an internal ice scraper ring
  • Variety of actuators and terminations
  • Variety of contact options and contact materials
  • Stainless steel housing
Potential Applications:
  • Aircraft landing gear and flap/stabilizer controls
  • Aircraft engine thrust reversers
  • Space vehicles
  • Armored personnel carriers
Search Keywords: 1EN75R3
spécification +
  • Product Attribute
    Attribute Value Select Attribute
  • fournisseur:
    Honeywell
  • Référence:
    1EN75-R3
  • Alias/AKA:
    M8805/65-001
  • Unité de mesure:
    Per Each
  • RoHS:
    No
  • HTS:
    85365019
  • COO:
    US
  • ECCN:
    EAR99
  • Référence: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Type:
    N/A
  • Actuator Style:
    Top Plunger
  • Pole Throw Configuration:
    DPDT
  • Switch Configuration:
    N.O./N.C.
  • Operating Force:
    53.38 N
  • Dimension:
    35.05 x 35.05 x 100.46 mm
  • Maximum Current Rating:
    5@28VDC A
  • Terminal Type:
    Connector
  • NEMA Standard as Enclosure Rating:
    N/A
  • Body Orientation:
    Straight
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
en stock: 94
Peut être expédié immédiatement
Quantité minimale de commande pour qté en rupture de stock:
3
16 Weeks Peut expédier 14/9/26
Ajouter au panier
PRICE (EUR)
QTÉ
Prix unitaire
1
€1,462.65
3
€1,448.17
5
€1,433.82
8
€1,419.63
10 +
€1,405.58
