103SR18-1

Honeywell

Honeywell Magnetic Value-added Hall-effect Sensor: 103SR Series, Latching Hall-effect Digital Position Sensors, 4.5 to 24 Vdc ...

+ see all

Fiche technique ACCESSOIRES Notify Me

RoHS Compliant

Emballage

Certificate of Compliance Guarantee

Description +

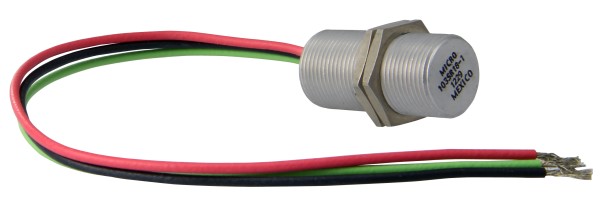

Honeywell Magnetic Value-added Hall-effect Sensor: 103SR Series, Latching Hall-effect Digital Position Sensors, 4.5 to 24 Vdc supply voltage, Sealed, 15/32-32 UNS-2A cylindrical aluminum threaded housing, Digital sinking output, Two hex nuts, 152,4 mm [6 in] 24 gauge stranded individual lead wires w/ XLPE insulation.

Product Highlights:

Current sinking ouput
Rugged, sealed threaded aluminum housing NEMA 3, 3R, 3S, 4, 12 and 13 requirements
24 gauge, 152,4 mm [6 in] stranded leadwires, color coded and XLPE insulated
Adjustable mounting

Potential Applications:

Search Keywords: 103SR181

spécification +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
fournisseur:

Honeywell
Référence:

103SR18-1
Unité de mesure:

Per Each
RoHS:

Yes
HTS:

85423919
COO:

MX
ECCN:

EAR99
Référence:

50
Magnetic Type:

Latching
Maximum Output Current:

20 mA
Mounting:

Panel
Minimum Magnetic Sensor Release Point:

-120 Gs
Maximum Magnetic Sensor Operating Point:

120 Gs
Output Type:

0.4 V
Output Driver:

NPN
Product Type:

Digital
Dimension:

25.4mm x 12mm dia
Typical Operating Supply Voltage:

4.5 to 24 V
Termination Type:

Wire Leads
Operating Temperature:

-40 to 100 °C
