Available Replacements
Reemplazo recomendado

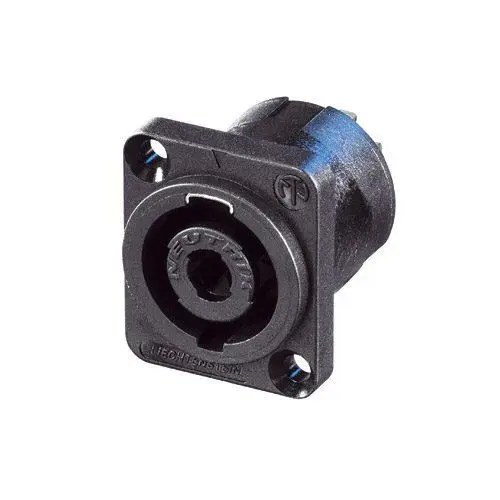

La imagen es representativa - ver especificaciones del fabricante
NL4MP-UC
NEUTRIK
speakON Chassis Connectors - 4 pole chassis connector for 40 A rms continuous - 50 A audiosignal duty cycle 50%. Black D-size ...
FICHA TÉCNICA Accesorios
Cumple con RoHS
Descontinuado y reemplazado
Certificate of Compliance Guarantee
Descripción
+
speakON Chassis Connectors - 4 pole chassis connector for 40 A rms continuous - 50 A audiosignal duty cycle 50%. Black D-size flange - countersunk thru holes - 1/4" flat tabs (termination e.g. with Faston tab Tyco part # 41829)
The speakON panel mount c
Características destacadas del producto:
- Standard current rating 30 Amp
- High current version up to 50 Amp audio current
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
Palabras clave de búsqueda: NL4MPUC
Especificaciones
+
-
Atributo del productoValor de atributo Seleccionar atributo
-
Proveedor:NEUTRIK
-
Nº de pieza:NL4MP-UC
-
Unidad de medida:Por Each
-
RoHS:Yes
-
HTS:8536694040
-
COO:LI
-
ECCN:EAR99
-
Paquete estándar del proveedor:
100 -
Type:Loudspeaker Connector
-
Gender:M
-
Body Orientation:Straight
-
Mounting:Panel Mount
-
Housing Material:Polyamide
-
Number of Contacts:4
-
Contact Plating:Silver
-
Termination Method:N/A
-
Operating Temperature:-30 to 80 °C
Tools/3D Models
+
-
Caja de herramientas EE
FICHA TÉCNICA
Neutrik Meaningful Part Numbering System
Learn more about NEUTRIK High Impact, Flexible and Scalable eSports Solutions
- Item discontinued
