NEUTRIK
NC5FXX-BAG

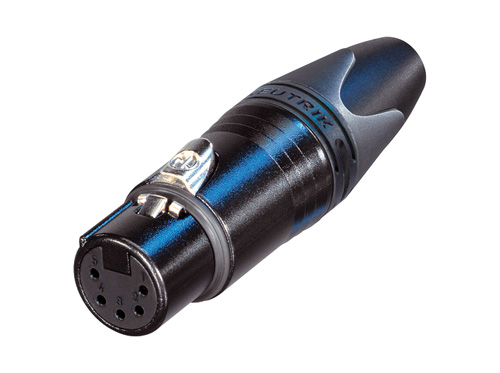

XX Series - 5 pole female cable connector with black metal housing and silver contacts. The next generation of the worldwide ...
Ver hoja de datos Preguntar a la hoja de datos Accesorios Notificarme
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well proteced against any damage
| Atributo del producto | Valor del atributo Seleccionar atributo |
|---|---|
| Proveedor: | NEUTRIK |
| Nº de pieza: | NC5FXX-BAG |
| Unidad de medida: | Por unidad |
| RoHS: | Sí |
| HTS: | 8536694020 |
| COO: | LI |
| ECCN: | EAR99 |
Embalaje estándar del proveedor:
|
100 |
| Tipo: | XLR Connector |
| Género: | F |
| Orientación del Cuerpo: | Straight |
| Montaje: | Cable Mount |
| Material de la Carcasa: | Polyamide 6/6 |
| Número de Contactos: | 5 |
| Recubrimiento del Contacto: | Silver over Nickel |
| Método de terminación: | Solder |
| Temperatura de Funcionamiento: | -30 to 80 °C |
-
