Available Replacements
Reemplazo recomendado
La imagen es representativa - ver especificaciones del fabricante
GEM30I24-P1J
MEAN WELL

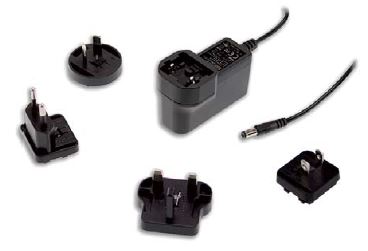

AC-DC Wallmount Adapter - Medical - 30W - 24 VDC - 1.25A - P1J DC Plug - Interchangable Blades (Pictured but purchased separat ...
Accesorios
Cumple con RoHS
Descontinuado y reemplazado
Certificate of Compliance Guarantee
Descripción
+
AC-DC Wallmount Adapter - Medical - 30W - 24 VDC - 1.25A - P1J DC Plug - Interchangable Blades (Pictured but purchased separately)
Palabras clave de búsqueda: GEM30I24P1J
Especificaciones
+
-
Atributo del productoValor de atributo Seleccionar atributo
-
Proveedor:MEAN WELL
-
Nº de pieza:GEM30I24-P1J
-
Unidad de medida:Por Each
-
RoHS:Yes
-
HTS:8504409510
-
COO:TW
-
ECCN:EAR99
-
Paquete estándar del proveedor:
1 -
Input/Output Type:AC/DC
-
Type:Regulated-Switching
-
Style:WallMount
-
Output Type:Fixed
-
Number of Outputs:1
-
Power:30 W
-
Output Voltage:24 VDC
-
Output Current:1.25 A
-
Ripple & Noise:100 mV
-
Grade:Medical
-
MOPP:2X
-
DOE Efficiency Level:VI
-
CoC Tier:No
-
Safety Class:II
-
Safety Approvals:CB, CE, cRUus, TUV
-
Efficiency:88.5(Typ) %
-
Output Connector Type:Barrel - Female
-
Output Connector Polarity:Center Positive
-
Output Connector Diameters:2.1 x 5.5 mm
-
Output Connector Angle:Straight
-
Output Cord Length:1.5m (59.1in)
-
AC Input Voltage:80 to 264
-
Minimum AC Input Voltage:80
-
Maximum AC Input Voltage:264
-
Input Frequency:47 to 63 Hz
-
Line Regulation:1.00 %
-
Load Regulation:2.00 %
-
Overload Protection:Yes
-
Over Voltage Protection:Yes
-
Short Circuit Protection:Yes
-
Thermal Protection:No
-
Operating Temperature:-25 to 70 °C
-
Power Indicator:No
-
Minimum Load (Amps):0
-
Minimum Isolation Voltage:5656Vdc
-
Input Connector Type:Interchangeable - Order Separately
-
Dimensions L x W x H:75.5 x 39.1 x 56.2 mm
-
Dimensions L x W x H(in):2.98 x 1.54 x 2.22 in
Tools/3D Models
+
-
Caja de herramientas EE
- Item discontinued
Garantía de igualación de precios
We’ll meet or beat any authorized competitor’s published price for this part.
