图片仅供参考 - 请查看制造商规格
描述
+

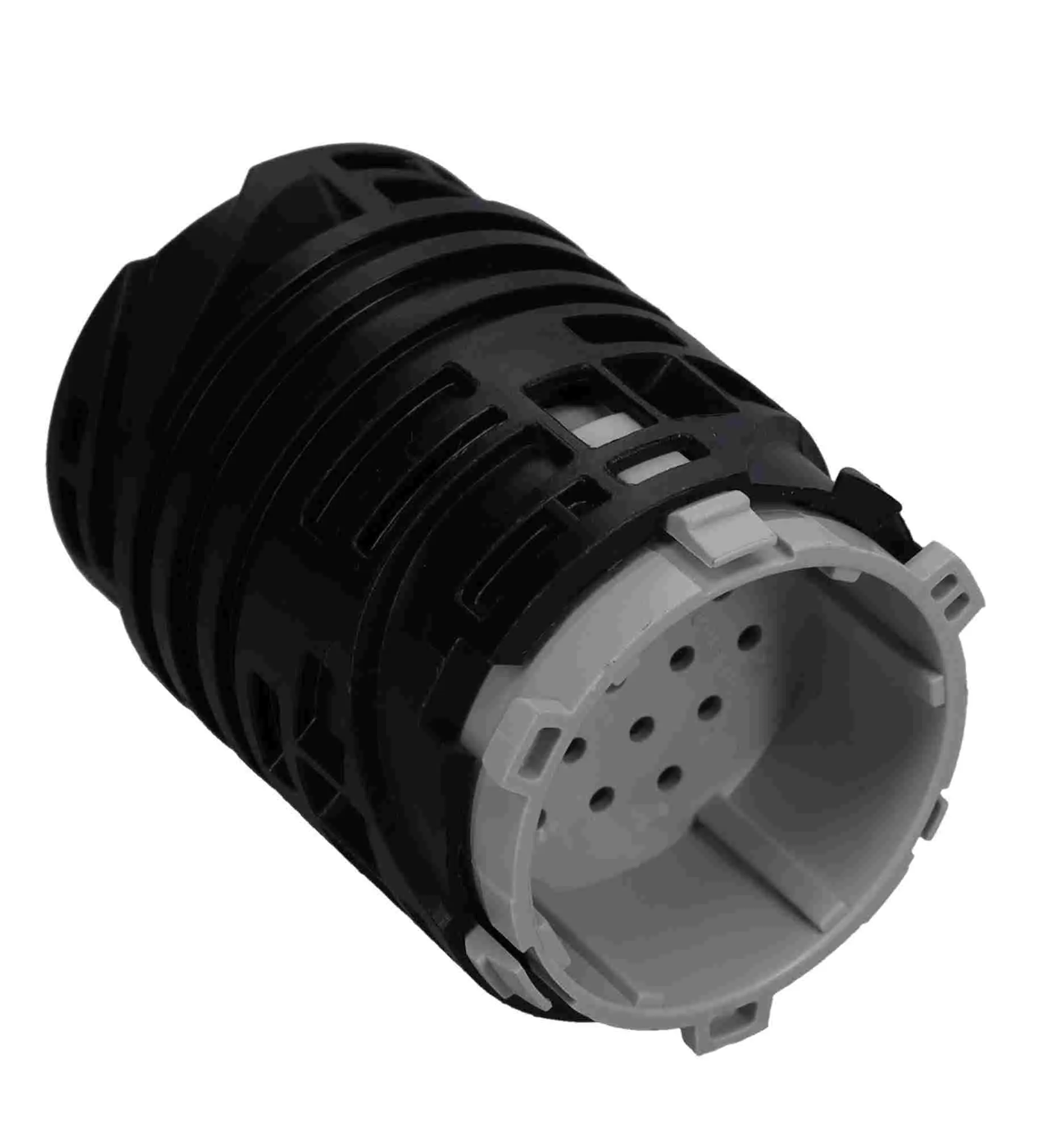

Wire-to-Wire Receptacle, 19-way, Grey
搜索关键词: APD2BP19S
规格
+
-
产品属性属性值 选择属性
-
供应商:ITT CANNON
-
部件编号:APD-2BP19S
-
别名/又称:121583-0136
-
计量单位:每 件
-
RoHS:是
-
HTS:8536694020
-
COO:DE
-
ECCN:EAR99
-
供应商标准包装:
40 -
系列:APD 19-way
-
密封材料:FKM
-
编码（机械键位与视觉颜色编码）:Code 2 - grey (RAL 7036)
-
温度范围:-40 °C up to 125 °C (ISO 15170-2, Sec. 6.4)
-
湿度范围:up to 95 %
-
密封方式:IP 67 (DIN EN 60529)
-
耐久性等级:50 Mating Cycles
-
外壳材料:PBT GF
-
绝缘体电阻:10 MΩ min.
-
工业气候等级:SO2, 0,67 %
-
耦合螺母材质:PA 46 GF
-
工作电压:48 VDC
-
静态负载:250 N axial, 150 N lat. (ISO 15170-2, Sec. 4.5)
-
接触电阻:5 mΩ max
-
工作电流:see derating curve (catalog)
-
抗振动能力:Sine, 300 m/s², 3 x 100h, RT and 120°C (ISO 15170-2)
-
动态冲击:Free fall with cable (EN 61984 Sec. A9, height 1m)
-
流体兼容性:Brakefluid, ATF, fuel, .. (ISO 15170-2, Sec. 6.6)
-
耐电压:1000 VAC, 60 seconds
-
公母类型:Pin
-
连接器类型:Plug
-
盐雾:96 h, 35 °C (ISO 15170-2, Sec. 6.2)
-
联接扭矩:3.5 Nm max
工具/3D模型
+
-
電子工程工具箱
数据表
Component Moment: ITT APD series
Learn more about ITT Cannon APD Connector Series
Frequently Asked Questions
Is APD-2BP19S RoHS compliant?
Yes, APD-2BP19S is RoHS compliant.
What is the lead time for APD-2BP19S?
The standard lead time for APD-2BP19S is approximately 10 days. In-stock quantities ship from OnlineComponents.com.
