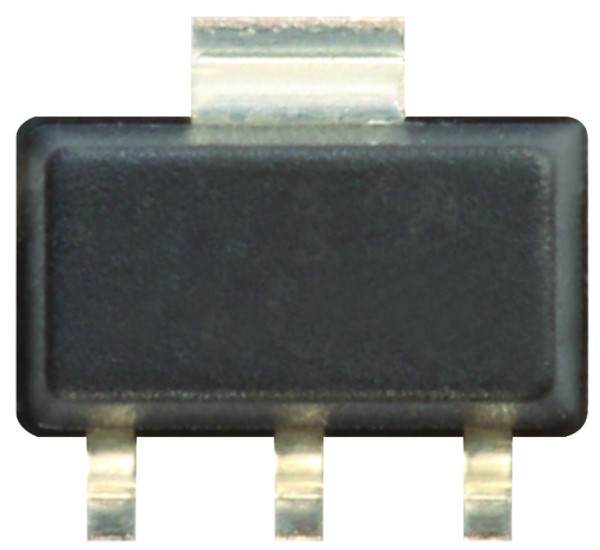

VF526DT by honeywell
Image is representational - see manufacturer specifications

Honeywell Authorized Distributor

VF526DT

Honeywell Hall-effect Digital Position Sensor ICs: VF526DT Series, Bipolar Latch, Dual Hall- effect sensor IC with speed and d ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Reel Packaging
Certificate of Compliance
Description +
Honeywell Hall-effect Digital Position Sensor ICs: VF526DT Series, Bipolar Latch, Dual Hall- effect sensor IC with speed and directions output, 4-pin SOT-89B package, Surface mounted, 1000 units per tape and reel
Product Highlights:
  • Single miniature plastic package includes two separate Hall sensors
  • Frequency signal for speed output
  • Logic level (High or Low) signal for direction output
  • Temperature compensated magnetics
  • Functionality of two discrete Hall sensors and logic circuitry outputs
  • Symmetry of operate/release points about zero gauss (bipolar/latching)
  • Low current consumption
  • Wide operating voltage range
Search Keywords: VF526DT
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Honeywell
  • Part No:
    VF526DT
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    85423990
  • COO:
    CN
  • ECCN:
    EAR99
  • Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1000
  • Magnetic Type:
    Bipolar Latch
  • Maximum Output Current:
    5 mA
  • Mounting:
    PCB Surface Mount
  • Minimum Magnetic Sensor Release Point:
    -130 Gs
  • Maximum Magnetic Sensor Operating Point:
    130(Typ) Gs
  • Output Type:
    Sink
  • Output Driver:
    NPN
  • Product Type:
    Digital
  • Dimension:
    4.39 x 2.49 x 1.32 mm
  • Typical Operating Supply Voltage:
    3.4 to 24 V
  • Termination Type:
    Gull Wing
  • Operating Temperature:
    -40 to 125 °C
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is VF526DT RoHS compliant?
Yes, VF526DT is RoHS compliant.
What is the lead time for VF526DT?
The standard lead time for VF526DT is approximately 6 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 8,491
Can Ship immediately
MOQ for In Stock Qty:
100
MOQ for out of Stock Qty:
2500
6 Weeks can ship 11/30/26
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
100
$4.53
500
$4.15
1,000
$3.73
2,500
$3.68
5,000
$3.67
7,500
$3.66
10,000 +
$3.65
