La imagen es representativa - ver especificaciones del fabricante
V7-1C33D855-002
Honeywell
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Normally Closed (SPNC), 15.1 A 125, 250, or 277 Vac, 22,1 mm [0 ...
FICHA TÉCNICA Accesorios Notificarme
Cumple con RoHS
Descripción
+

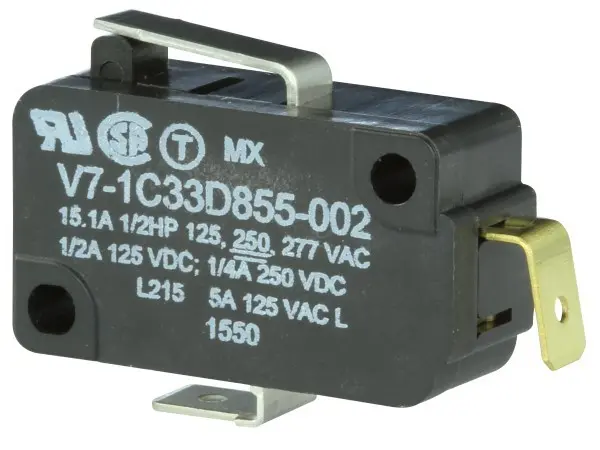

MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Normally Closed (SPNC), 15.1 A 125, 250, or 277 Vac, 22,1 mm [0.87 in] Straight Lever Actuator, 160 g [5.6 oz] Maximum Operating Force, 2,9 mm [0.11 in] Mounting Holes, -40 °C to 150 °C [-40 °F to 302 °F] Temperature Range, 4,75 mm x 0,51 mm [0.187 in x 0.02 in] Quick Connect Termination with Normally Closed Terminal Formed Down 85° and Common Terminal Formed Toward Plunger, UL, CSA
Palabras clave de búsqueda: V71C33D855002
Especificaciones
+
-
Atributo del productoValor de atributo Seleccionar atributo
-
Proveedor:Honeywell
-
Nº de pieza:V7-1C33D855-002
-
Unidad de medida:Por Each
-
RoHS:Yes
-
HTS:85365080
-
COO:MX
-
ECCN:EAR99
-
Paquete estándar del proveedor:
1 -
Mounting:Through Hole
-
Pole Throw Configuration:SPST
-
Switch Configuration:N.C.
-
Actuator Material/Style:Steel/Lever
-
Contact Rating @ Voltage:372.85 A
-
Maximum Movement Differential:0.38 mm
-
Operating Force:1.57 N
-
Termination Style:Quick Connect
-
Dimension:28.83 x 10.16 x 24.61 mm
-
Body Orientation:Straight
-
IP Rating:N/A
Tools/3D Models
+
-
Caja de herramientas EE
Guías de productos
+
FICHA TÉCNICA
Component Moment Extended Cut: Honeywell Hazard Switches
Learn more about Honeywell MICRO SWITCH™ Premium Basic Switch for Hazardous Locations
Garantía de igualación de precios
We’ll meet or beat any authorized competitor’s published price for this part.
En stock:
90
Puede enviar inmediatamente
Cantidad mínima de pedido:
5
29 Weeks
puede enviar
7/12/26
Precio (USD)
Qty
Precio por unidad
5
$16.45
25
$14.91
50
$14.24
100
$13.63
250
$13.07
500
$12.72
1.000 +
$12.55
