La imagen es representativa - ver especificaciones del fabricante

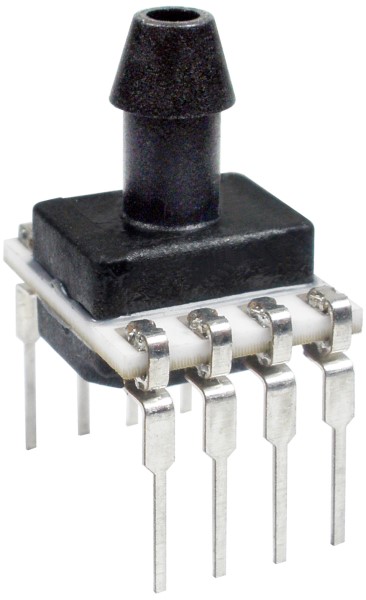

SSCDANN030PAAA5
Honeywell
TruStability® Board Mount Pressure Sensor - Compensated/Amplified: SSC Series, Standard Accuracy, ± 2% Total Error Band, DIP, ...
FICHA TÉCNICA Accesorios Notificarme
Cumple con RoHS
Descripción
+
TruStability® Board Mount Pressure Sensor - Compensated/Amplified: SSC Series, Standard Accuracy, ± 2% Total Error Band, DIP, Single Axial Barbed Port, 30 psi Absolute, Amplified Analog Output, 10% to 90% Vdd, 5 V Supply, Dry Gases Only, No Special Options
Características destacadas del producto:
- Meets IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level 1 requirements
- Small size
- Proprietary Honeywell technology
- Protected by multiple global patents
- Energy efficient
- Industry-leading long-term stability
- Industry-leading flexibility
- Total Error Band (TEB)
- Industry-leading accuracy
- High burst pressures
- High working pressure ranges
- Wide variety of pressure ranges
- Optional internal diagnostic functions
- 14-bit digital output (min. 12-bit sensor resolution)
- REACH and RoHS compliant
- Liquid media option
- Output: ratiometric analog; I2C- or SPI-compatible
Palabras clave de búsqueda: SSCDANN030PAAA5
Especificaciones
+
-
Atributo del productoValor de atributo Seleccionar atributo
-
Proveedor:Honeywell
-
Nº de pieza:SSCDANN030PAAA5
-
Unidad de medida:Por Each
-
RoHS:Yes
-
HTS:90262000
-
COO:CN
-
ECCN:EAR99
-
Paquete estándar del proveedor:
50 -
Mounting:PCB Through Hole
-
Accuracy:±0.25 %
-
Device Pressure Type:Absolute
-
Operating Pressure Range:0 to 30 psi
-
Media:Air,Gas
-
Output Voltage:0.5 to 4.5 V
-
Response Time:1 mS
-
Typical Operating Supply Voltage:5 V
-
Operating Temperature:-40 to 85 °C
-
Dimension:10 x 13.75 mm
Tools/3D Models
+
-
Caja de herramientas EE
Guías de productos
+
FICHA TÉCNICA
Component Moment Extended Cut: Honeywell Hazard Switches
Learn more about Honeywell TruStability® Silicon Pressure Sensors for Medical & Industrial Applications - SSC Series
Garantía de igualación de precios
We’ll meet or beat any authorized competitor’s published price for this part.
En stock:
117
Puede enviar inmediatamente
12 Weeks
puede enviar
10/8/26
Precio (USD)
Qty
Precio por unidad
1
$57.02
5
$44.07
10
$42.22
25
$40.13
50
$38.35
100
$37.93
250 +
$37.83
