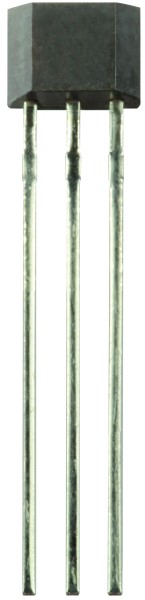

La imagen es representativa - ver especificaciones del fabricante
SS461C
Honeywell
Honeywell Hall-effect Digital Position Sensor ICs: SS460 Series,Bipolar latching magnetic actuation type, High sensitivity, Lo ...
FICHA TÉCNICA Accesorios Notificarme
Cumple con RoHS
Descripción
+
Honeywell Hall-effect Digital Position Sensor ICs: SS460 Series,Bipolar latching magnetic actuation type, High sensitivity, Low Gauss, Reverse polarity protection, Flat TO-92 style package, Available in bulk packaging of 1000 units per bag
Características destacadas del producto:
- Robust design: will operate up to 125 °C
- Built-in reverse voltage capability
- Sub-miniature, SOT-23 surface mount package supplied on tape and reel allows for a compact design with automated component placement, helping to reduce manufacturing costs
- Small, leaded, flat TO-92 package
- Bipolar latching magnetics respond to alternating North and South poles
- Wide operating voltage range of 4 Vdc to 24 Vdc makes these sensors useable in a wide range of applications
- RoHS-compliant materials meet Directive 2002/95/EC
Palabras clave de búsqueda: SS461C
Especificaciones
+
-
Atributo del productoValor de atributo Seleccionar atributo
-
Proveedor:Honeywell
-
Nº de pieza:SS461C
-
Unidad de medida:Por Each
-
RoHS:Yes
-
HTS:8542390001
-
COO:CN
-
ECCN:EAR99
-
Paquete estándar del proveedor:
5000 -
Magnetic Type:Bipolar Latch
-
Maximum Output Current:20 mA
-
Mounting:PCB Through Hole
-
Minimum Magnetic Sensor Release Point:-50(Typ) Gs
-
Maximum Magnetic Sensor Operating Point:50(Typ) Gs
-
Output Type:Sink
-
Output Driver:NPN
-
Product Type:Digital
-
Dimension:4.1 x 1.6 x 3 mm
-
Typical Operating Supply Voltage:4 to 24 V
-
Termination Type:PC Pins
-
Operating Temperature:-40 to 125 °C
Tools/3D Models
+
-
Caja de herramientas EE
FICHA TÉCNICA
Component Moment Extended Cut: Honeywell Hazard Switches
Learn more about Honeywell Toggle Switches for Aerospace and Military
Garantía de igualación de precios
We’ll meet or beat any authorized competitor’s published price for this part.
En stock:
3.417
Puede enviar inmediatamente
Cantidad mínima de pedido:
25
52 Weeks
puede enviar
17/5/27
Precio (USD)
Qty
Precio por unidad
25
$0.931
250
$0.833
500
$0.814
1.000
$0.797
2.500
$0.781
5.000
$0.771
10.000
$0.766
15.000 +
$0.757
