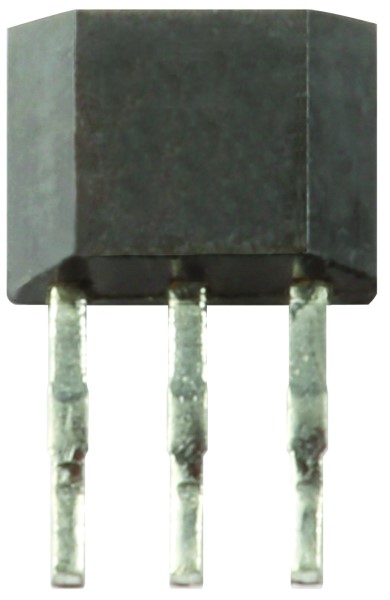

La imagen es representativa - ver especificaciones del fabricante
SS443A-S
Honeywell
Honeywell Hall-effect Digital Position Sensor ICs: SS400 Series, Temperature compensated unipolar Hall-effect sensor IC, Mediu ...
FICHA TÉCNICA Accesorios Notificarme
Cumple con RoHS
Terminado
BAG embalaje
Descripción
+
Honeywell Hall-effect Digital Position Sensor ICs: SS400 Series, Temperature compensated unipolar Hall-effect sensor IC, Medium sensitivity, Flat TO-92package, Short formed leads 3,18 mm [0.125 in] long, Surface mounted, Available in bulk pack of 1000 units per bag
Características destacadas del producto:
- Digital current sinking output
- Quad-Hall design virtually eliminates mechanical stress effects
- Temperature compensated magnetics
- Operate/release points can be customized
- High output current capability
- Operate/release points symmetrical around zero gauss (bipolar/latch)
- Package material: Plaskon 3300H
- Surface mount version available: SS400-S (with cut and formed leads)
Palabras clave de búsqueda: SS443AS
Especificaciones
+
-
Atributo del productoValor de atributo Seleccionar atributo
-
Proveedor:Honeywell
-
Nº de pieza:SS443A-S
-
Unidad de medida:Por Each
-
RoHS:Yes
-
HTS:8541406050
-
COO:CN
-
ECCN:EAR99
-
Paquete estándar del proveedor:
1000 -
Magnetic Type:Unipolar
-
Maximum Output Current:20 mA
-
Mounting:PCB Surface Mount
-
Minimum Magnetic Sensor Release Point:75 Gs
-
Maximum Magnetic Sensor Operating Point:180 Gs
-
Output Type:Sink
-
Output Driver:NPN
-
Product Type:Digital
-
Dimension:4.1 x 3 x 1.6 mm
-
Typical Operating Supply Voltage:3.8 to 30 V
-
Termination Type:Gull Wing
-
Operating Temperature:-40 to 150 °C
Tools/3D Models
+
-
Caja de herramientas EE
FICHA TÉCNICA
Component Moment Extended Cut: Honeywell Hazard Switches
Learn more about Honeywell Toggle Switches for Aerospace and Military
-
Este producto está descontinuado, pero aún está disponible.
Garantía de igualación de precios
We’ll meet or beat any authorized competitor’s published price for this part.
En stock:
774
Buques today, Si realiza un pedido en
Cantidad mínima de pedido:
5
Precio (USD)
Qty
Precio por unidad
5
$8.68
50
$7.76
100
$7.58
250
$7.42
500
$7.28
1.000
$7.16
3.000
$7.06
5.000 +
$6.96
