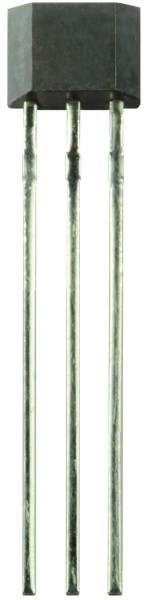

SS41F
Honeywell
The SS41F is a small, bipolar digital Hall-effect sensor IC designed to be operated by a magnetic field from a permanent magne ...
FICHA TÉCNICA Accesorios Notificarme
Cumple con RoHS
Descripción
+
The SS41F is a small, bipolar digital Hall-effect sensor IC designed to be operated by a magnetic field from a permanent magnet or an electromagnet.
Características destacadas del producto:
- Miniature construction: 3.0 mm x 4.0 mm [0.12 in x 0.16 in] plastic package
- Power consumption of only 5 mA max at 4.5 Vdc for energy efficiency
- Bipolar magnetics for ring magnet applications
- High speed: operates from 0 kHz to over 100 kH
- High output current capability
- Broad temperature range of -40 °C to 125 °C [-40 °F to 257 °F]
- Built-in reverse polarity protection
Aplicaciones potenciales:
- Speed and RPM (revolutions per minute) sensing
- Brushless dc (direct current) motor commutation
- Motor and fan control
- Tachometer, counter pickup
- Flow rate sensing
Palabras clave de búsqueda: SS41F
Especificaciones
+
-
Atributo del productoValor de atributo Seleccionar atributo
-
Proveedor:Honeywell
-
Nº de pieza:SS41F
-
Unidad de medida:Por Each
-
RoHS:Yes
-
HTS:8542390001
-
COO:MX
-
ECCN:EAR99
-
Paquete estándar del proveedor:
5000 -
Magnetic Type:Bipolar
-
Maximum Output Current:20 mA
-
Mounting:PCB Through Hole
-
Output Type:Sink
-
Output Driver:NPN
-
Product Type:Digital
-
Dimension:4.1 x 1.6 x 3 mm
-
Typical Operating Supply Voltage:4.5 to 24 V
-
Termination Type:PC Pins
-
Operating Temperature:-40 to 150 °C
