SS30AT by honeywell

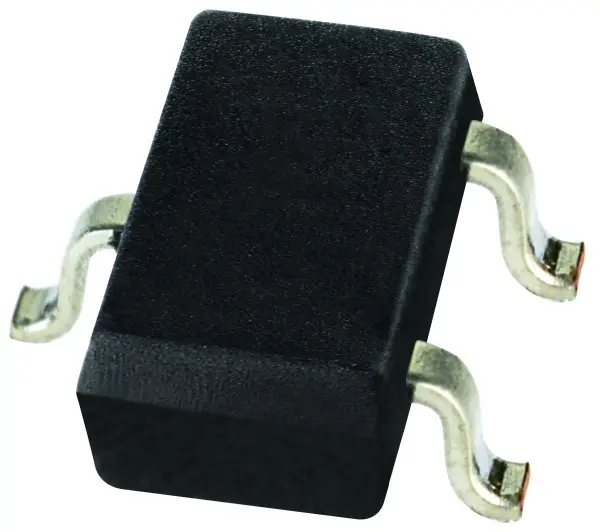

Image is representational - see manufacturer specifications

Honeywell Authorized Distributor

SS30AT

Magnetic Hall-Effect Sensor ICs: SS30AT Series Digital Bipolar Hall-Effect Sensor IC, Reverse Polarity Protection, Stable Outp ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Carton Packaging
Certificate of Compliance
Description +
Magnetic Hall-Effect Sensor ICs: SS30AT Series Digital Bipolar Hall-Effect Sensor IC, Reverse Polarity Protection, Stable Output Over -40° C to 125° C Temperature Range, SOT-23 Surface Mount Package, 3,000 Per Reel
Product Highlights:
  • Subminiature package size often allows for use in applications with tight PCB space where a compact design is needed
  • Sensitive bipolar magnetics respond to alternating north and south poles, often making these products well-suited for speed sensing and RPM measurement
  • Robust design with built-in reverse voltage protection simplifies installation and protects device from damage when mounted on a PCB
  • Thermally balanced integrated circuit provides for stable operation over a full temperature range
  • RoHS-compliant materials meet Directive 2002/95/EC
Potential Applications:
  • Speed and RPM (revolutions per minute) sensing
  • Brushless dc (direct current) motor commutation
  • Flow rate sensing
  • Motor and fan control
  • Tachometer, counter pickup
  • Electric vehicle control
  • Convertible roof position
  • Robotics control
Search Keywords: SS30AT
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Honeywell
  • Part No:
    SS30AT
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    85423900
  • COO:
    CN
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    9000
  • Magnetic Type:
    Bipolar
  • Maximum Output Current:
    20 mA
  • Mounting:
    PCB Surface Mount
  • Minimum Magnetic Sensor Release Point:
    -110 Gs
  • Maximum Magnetic Sensor Operating Point:
    110 Gs
  • Output Type:
    Sink
  • Output Driver:
    NPN
  • Product Type:
    Digital
  • Dimension:
    4.4 x 4.2 x 1.3 mm
  • Typical Operating Supply Voltage:
    4.5 to 24 V
  • Termination Type:
    Gull Wing
  • Operating Temperature:
    -40 to 125 °C
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is SS30AT RoHS compliant?
Yes, SS30AT is RoHS compliant.
What is the lead time for SS30AT?
The standard lead time for SS30AT is approximately 6 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 5,895
Can Ship immediately
MOQ for In Stock Qty:
25
MOQ for out of Stock Qty:
2250
6 Weeks can ship 11/3/26
ADD TO CART
Price (USD)
Qty
Unit Price
25
$1.504
500
$0.993
1,000
$0.961
2,250
$0.922
4,500
$0.913
6,750
$0.907
9,000 +
$0.905
Supplier's Standard Package
