La imagen es representativa - ver especificaciones del fabricante

SR16C-J6

Honeywell

Honeywell Value-added Hall-effect Position Sensors: SR16 Series, Low-cost digital Hall-effect vane sensor, 304,8 mm [12 in] wi ...

+ Ver todo

FICHA TÉCNICA Accesorios Notificarme

Cumple con RoHS
embalaje
Certificate of Compliance Guarantee
Descripción +

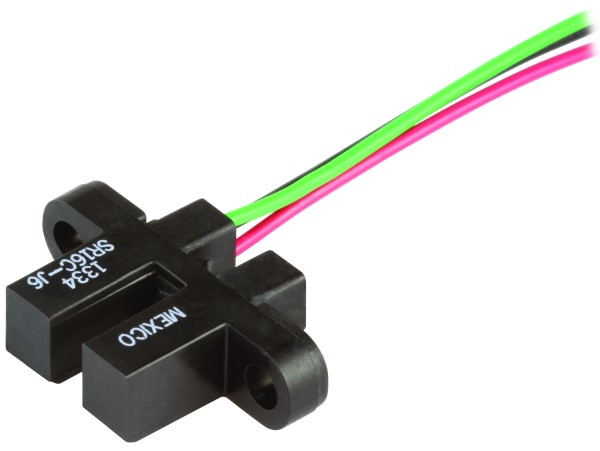

Honeywell Value-added Hall-effect Position Sensors: SR16 Series, Low-cost digital Hall-effect vane sensor, 304,8 mm [12 in] wires, No connector, Twin tower configuration, Digital sinking output, 3.8 to 30 Vdc supply voltage
Características destacadas del producto:
  • Compact, robust packages
  • Mechanically interchangeable with our standard optical style sensors
  • Operated by a Ferrous Vane interrupter for pulse counting or position sensing
  • Current sinking (Open Collector) output
  • 3.8 Vdc to 30 Vdc power supply
  • Medium level magnetic switching to reduce stray field interference
  • Internally sealed packages for moderate environment applications
  • No mechanical contacts; eliminates product wear
  • Noncontact position sensing
Palabras clave de búsqueda: SR16CJ6
Especificaciones +
  • Atributo del producto
    Valor de atributo Seleccionar atributo
  • Proveedor:
    Honeywell
  • Nº de pieza:
    SR16C-J6
  • Unidad de medida:
    Por Each
  • RoHS:
    Yes
  • HTS:
    8536501907
  • COO:
    MX
  • ECCN:
    EAR99
  • Paquete estándar del proveedor: Esta información se proporciona a los clientes que prefieren comprar en múltiplos de la cantidad del paquete estándar del fabricante. Las cantidades mínimas de pedido y los múltiplos de pedido requeridos se presentan con nuestra información de precios y d
    20
  • Magnetic Type:
    N/A
  • Maximum Output Current:
    20 mA
  • Mounting:
    Screw
  • Output Type:
    Sink
  • Output Driver:
    NPN
  • Product Type:
    Digital Vane
  • Dimension:
    24.6 x 5.58 x 11.9 mm
  • Typical Operating Supply Voltage:
    3.8 to 30 V
  • Termination Type:
    Wire Leads
  • Operating Temperature:
    -20 to 85 °C
