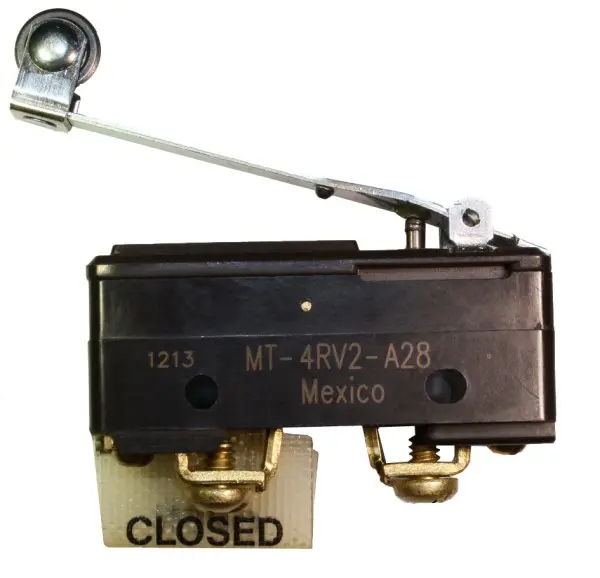

La imagen es representativa - ver especificaciones del fabricante
MT-4RV2-A28
Honeywell
MICRO SWITCH™ Specialty Large Basic Switches: MT Magnetic Blow-Out Series, Single Pole Double Throw (SPDT), 10 A 125 Vac/Vdc N ...
FICHA TÉCNICA Accesorios Notificarme
Cumple con RoHS
Descripción
+
MICRO SWITCH™ Specialty Large Basic Switches: MT Magnetic Blow-Out Series, Single Pole Double Throw (SPDT), 10 A 125 Vac/Vdc Non-Polarized, 48,3 mm [1.90 in] Stainless Steel Sintered Roller Lever Actuator, Staked Binding Head Screw Termination, Flexible Insulator, Mounting Holes will Accept Pins or Screws, UL, CSA
Características destacadas del producto:
- Mounting interchangeability with BZ/BA switches
- Rated for 10 A resistive at 125 Vac/Vdc and 3 A resistive at 250 Vdc
- Mechanical life of 100,000 cycles at 95% survival
- Arc-extinguishing design in contact area
- Arc-resistant case
Aplicaciones potenciales:
- DC motors
- Solenoids
Palabras clave de búsqueda: MT4RV2A28
Especificaciones
+
-
Atributo del productoValor de atributo Seleccionar atributo
-
Proveedor:Honeywell
-
Nº de pieza:MT-4RV2-A28
-
Unidad de medida:Por Each
-
RoHS:Yes
-
HTS:85365080
-
COO:MX
-
ECCN:EAR99
-
Paquete estándar del proveedor:
50 -
Mounting:Through Hole
-
Pole Throw Configuration:SPDT
-
Switch Configuration:N/A
-
Actuator Material/Style:Roller Lever
-
Contact Rating @ Voltage:10@125VAC 125VDC A
-
Maximum Movement Differential:1.65 mm
-
Operating Force:0.76 N
-
Termination Style:Screw
-
Dimension:49.3 x 17.5 x 47.2 mm
-
Body Orientation:Straight
-
IP Rating:N/A
