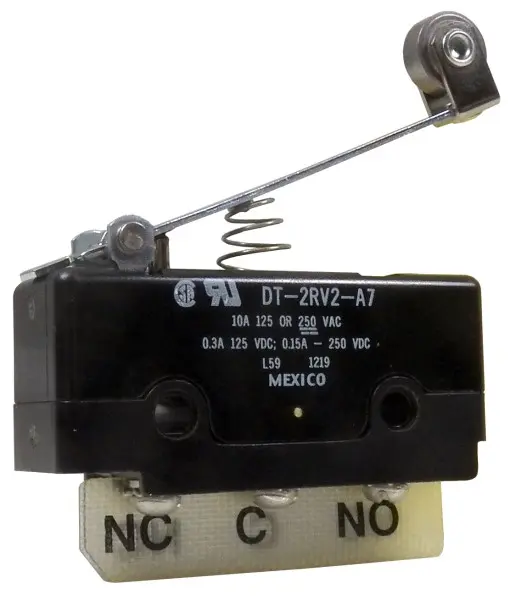

La imagen es representativa - ver especificaciones del fabricante
DT-2RV2-A7
Honeywell
MICRO SWITCH™ Specialty Large Basic Switches: DT Series, Double Pole Double Throw (DPDT), 10 A 125/250 Vac, 48,3 mm [1.90 in] ...
FICHA TÉCNICA Accesorios Notificarme
Cumple con RoHS
Descripción
+
MICRO SWITCH™ Specialty Large Basic Switches: DT Series, Double Pole Double Throw (DPDT), 10 A 125/250 Vac, 48,3 mm [1.90 in] Sintered Roller Lever Actuator, 4-40 UNC Round Head Screw Termination with Lock Washers, Flexible Insulator, Mounting Holes will Accept Pins or Screws, UL, CSA
Características destacadas del producto:
- Mounting interchangeability with type Z switches
- Rated for 10 A at 240 Vac
- Temperature tolerance to 82 C [180 F]
- Design permits several wiring combinations
Aplicaciones potenciales:
- Irrigation systems
- Semi-trailer trucks
- Timing devices
- Office equipment
- Test instruments
- Medical/dental equipment
- HVAC equipment
- Manually operated devices
- Valves
Palabras clave de búsqueda: DT2RV2A7
Especificaciones
+
-
Atributo del productoValor de atributo Seleccionar atributo
-
Proveedor:Honeywell
-
Nº de pieza:DT-2RV2-A7
-
Unidad de medida:Por Each
-
RoHS:Yes
-
HTS:85365080
-
COO:MX
-
ECCN:EAR99
-
Paquete estándar del proveedor:
1 -
Mounting:Through Hole
-
Pole Throw Configuration:DPDT
-
Switch Configuration:N.O./N.C.
-
Actuator Material/Style:Roller Lever
-
Contact Rating @ Voltage:10@250VAC A
-
Maximum Movement Differential:14.4 mm
-
Operating Force:2.09 N
-
Termination Style:Screw
-
Dimension:49.3 x 17.5 x 48.5 mm
-
Body Orientation:Straight
-
IP Rating:N/A
Tools/3D Models
+
-
Caja de herramientas EE
FICHA TÉCNICA
Component Moment Extended Cut: Honeywell Hazard Switches
Learn more about Honeywell Toggle Switches for Aerospace and Military
Garantía de igualación de precios
We’ll meet or beat any authorized competitor’s published price for this part.
En stock: 0
MOQ para cantidad agotada:
2
13 Weeks
puede enviar
26/8/26
Precio (USD)
Qty
Precio por unidad
2
$519.40
3
$426.17
4
$379.56
5 +
$371.97
Haga clic para obtener una cotización
