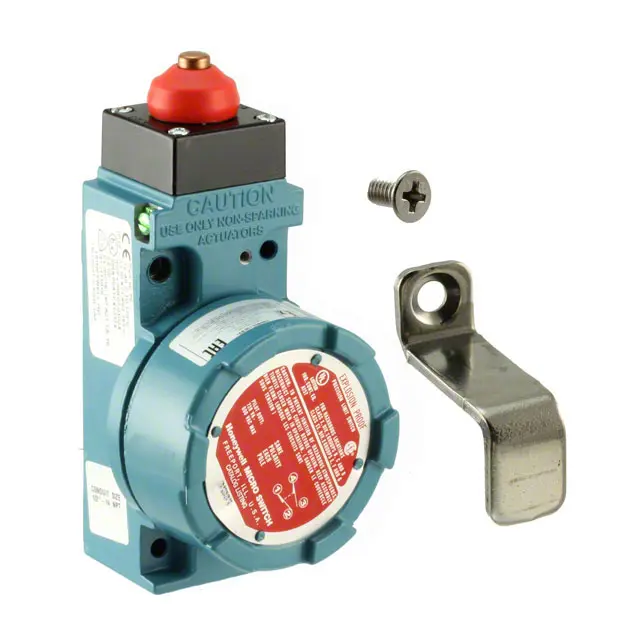

La imagen es representativa - ver especificaciones del fabricante
BXC3K
Honeywell
Limit Switch - SPDT-1NC/1NO - 10A, 600VAC/250VDC - Pin Plunger Actuator - 0.5-14 NPT Conduit - Screw Mount.
FICHA TÉCNICA Accesorios Notificarme
Cumple con RoHS
Descripción
+
Limit Switch - SPDT-1NC/1NO - 10A, 600VAC/250VDC - Pin Plunger Actuator - 0.5-14 NPT Conduit - Screw Mount.
Características destacadas del producto:
- UL, CSA and European approvals
- Sealing - applicable portions of IP67 and NEMA 1, 3, 4, 6, 7, 9, and 13
- Diverse conduit selection for wide range of applications
- Compatible with LSX
- Tracking interchangeability with MICRO SWITCH ML-E1 and HDLS
- Variety of heads and non-sparking actuators
- 10 A continuous carry electrical rating
- Choice of silver or gold contacts
- Internal grounding screw
Aplicaciones potenciales:
- Control valves and actuators
- Offshore drilling
- Grain elevators
- Petrochemical plants
- Chemical plants
- Waste treatment
- Paint booths
- Mining conveyors
- Pulp and paper coating
- Hazardous waste handling
Palabras clave de búsqueda: BXC3K
Especificaciones
+
-
Atributo del productoValor de atributo Seleccionar atributo
-
Proveedor:Honeywell
-
Nº de pieza:BXC3K
-
Unidad de medida:Por Each
-
RoHS:Yes
-
HTS:8536500000
-
COO:MX
-
ECCN:EAR99
-
Paquete estándar del proveedor:
1 -
Type:N/A
-
Actuator Style:Top Pin Plunger
-
Pole Throw Configuration:SPDT
-
Switch Configuration:N.O./N.C.
-
Operating Force:17.8 N
-
Dimension:N/A
-
Maximum Current Rating:10@24VDC A
-
Terminal Type:Conduit
-
NEMA Standard as Enclosure Rating:1, 3, 4, 6, 13
-
Body Orientation:Straight
