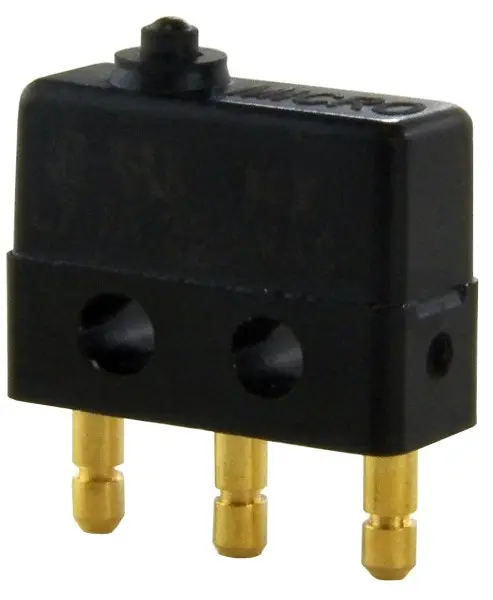

La imagen es representativa - ver especificaciones del fabricante
4SX37-H58
Honeywell
MICRO SWITCH™ Subminiature Basic Switches: SX Series, Single Pole Double Throw (SPDT), 7 A 250 Vac, 1,39 N [5.0 oz] Maximum Op ...
FICHA TÉCNICA Accesorios Notificarme
Cumple con RoHS
Descripción
+
MICRO SWITCH™ Subminiature Basic Switches: SX Series, Single Pole Double Throw (SPDT), 7 A 250 Vac, 1,39 N [5.0 oz] Maximum Operating Force, Pin Plunger Actuator, Additional Overtravel, 3,94 mm x 1,47 mm [0.155 in x 0.058 in] Quick Connect Termination, High Temperature Construction 204 °C [400 °F], 4,83 mm [0.19 in] Mounting Centers, UL, CE, CSA, ENEC
Características destacadas del producto:
- Honeywell 4SX37-H58 has a long operating life
- Choice of electrical termination (solder, quick connect, PCB)
- Choice of operating characteristics
- Optional series constructions available (gold contacts for low energy switching, bifurcated gold contacts for maximum reliability, power load switching capability to 7 A)
- This Honeywell Switch has MIL-PRF-8805 qualified listings available
- Elongated mounting hole for easier, more accurate mounting
- Choice of actuation (plunger, as well as a variety of integral and auxiliary actuators)
Aplicaciones potenciales:
- Aerospace
- Appliances
- Vending machines
- Timing devices
- Office equipment
- Computer/business equipment
- Test instruments
- Medical/dental equipment
- Communications equipment
- HVAC equipment
- Manually operated devices
- Valves
Palabras clave de búsqueda: 4SX37H58
Especificaciones
+
-
Atributo del productoValor de atributo Seleccionar atributo
-
Proveedor:Honeywell
-
Nº de pieza:4SX37-H58
-
Unidad de medida:Por Each
-
RoHS:Yes
-
HTS:85365000
-
COO:MX
-
ECCN:EAR99
-
Paquete estándar del proveedor:
1 -
Mounting:Through Hole
-
Pole Throw Configuration:SPDT
-
Switch Configuration:N.O./N.C.
-
Actuator Material/Style:Plastic/Plunger
-
Contact Rating @ Voltage:7@250VAC A
-
Maximum Movement Differential:0.13 mm
-
Operating Force:1.39 N
-
Termination Style:Solder
-
Dimension:12.7 x 5.08 x 14.86 mm
-
Body Orientation:Straight
-
IP Rating:N/A
Tools/3D Models
+
-
Caja de herramientas EE
FICHA TÉCNICA
Component Moment Extended Cut: Honeywell Hazard Switches
Learn more about Honeywell Toggle Switches for Aerospace and Military
Garantía de igualación de precios
We’ll meet or beat any authorized competitor’s published price for this part.
En stock:
205
Puede enviar inmediatamente
17 Weeks
puede enviar
21/9/26
Precio (USD)
Qty
Precio por unidad
1
$51.55
5
$50.96
10
$44.48
25
$42.45
50
$41.47
100
$41.37
250 +
$41.27
