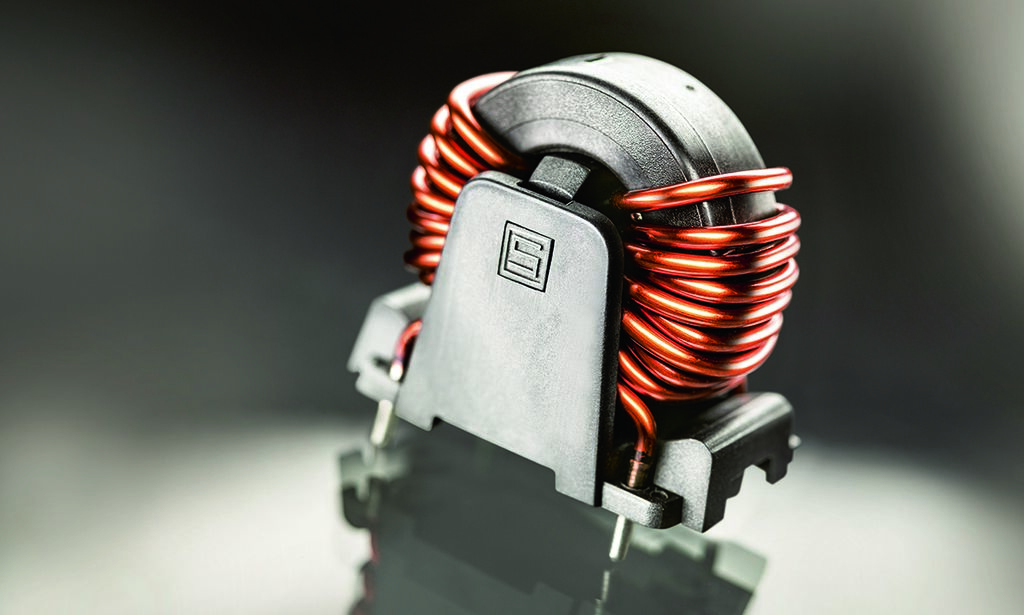

SCHURTER DKIV-1 Series - Vertical Mount, Common Mode Chokes - High Current THT Choke, Single Phase
The DKIV-1 Series are compact high current chokes with choice of performance using nanocrystalline or ferrite ring cores. The series features an open frame design for optimized heat dissipation, and is particularly suitable for applications with frequency converters, charge stations, USP-systems, and switching power supplies.
-
Rated voltage: IEC, UL: 300 VAC, CSA: 250 VAC (400Hz max) , 450 VDC
-
Rated Current: 10 - 50 A @ Ta 40 °C
-
Allowable Operation Temperature: -40 °C to 100 °C
-
Rated inductance: 0.15 - 8.2 mH, Tol. -30% +50%
-
Nanocrystalline core options for higher performance
-
Approvals and Compliances: c-UR-us, ENEC , CE, UKCA
