Available Replacements
Possible Replacement

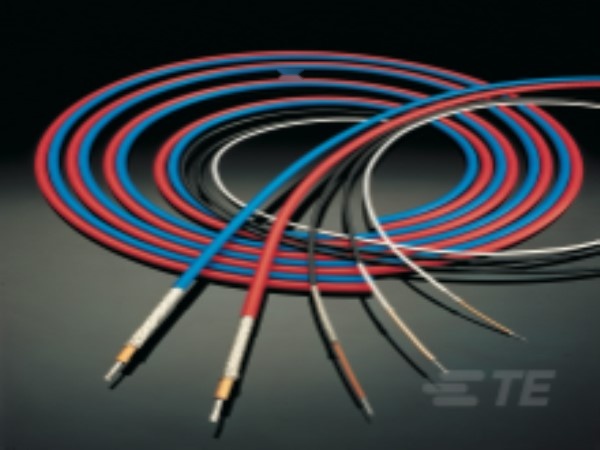

Image is representational - see mfr. specs
275604-000
TE Connectivity / Raychem Brand
7724S1664-9
Datasheet Accessories Notify Me
RoHS Compliant
Pack Packaging
Description
+
7724S1664-9
Search Keywords: 275604000
SPECS
+
-
Product AttributeAttribute Value Select Attribute
-
Supplier:TE Connectivity / Raychem Brand
-
Part No:275604-000
-
Unit of Measure:Per Foot
-
RoHS:Yes
-
HTS:8544491000
-
COO:US
-
ECCN:EAR99
-
Supplier Standard Pack:
1 -
Cable Type:Cheminax
-
Impedance:77 Ω
-
Dielectric Material:Radiation-Crosslinked, Modified ETFE
-
Capacitance:30 pF/ft
-
Jacket Color:White
-
Wire Diameter:.025 in, .64 mm
-
Dielektrischer Durchmesser:1.22 mm
-
Dielectric Diameter:.048 in
-
Cable Style:Twisted Pair
-
Overall Outside Diameter:.129 in, 3.28 mm
-
Wire Size:24 AWG, .2047 mm²
-
Product Type:Wire Lead
-
Shield Material:Silver-Coated Copper
-
Product Classification:Cable - Coaxial
-
Operating Temperature Range:-65 – 200 °C, -85 – 392 °F
-
Cable Dielectric Diameter:.048 in, 1.22 mm
-
Shield Style:Single
-
Conductor Material:Silver-Plated High Strength Copper
Tools/3D Models
+
-
EE ToolBox
Product Drawing - Cheminax, 77 Ohm, AWG 24, 19 Strands of AWG 36, Optimized Shield, Data Bus Cable, MIL-STD-1553, Outer Space Use
Datasheet
Product Specification - Cable, High-Frequency and Controlled Electrical
Price Match Guarantee
We�ll meet or beat any authorized competitor�s published price for this part.
In Stock:
1,881 Feet
Can Ship immediately
You may purchase all in-stock quantity of 1,881
Stock lot only:
1881 Feet
MOQ for In Stock Qty:
2500 Feet
MOQ for out of Stock Qty:
2500 Feet
30 Weeks
can ship
12/28/26
