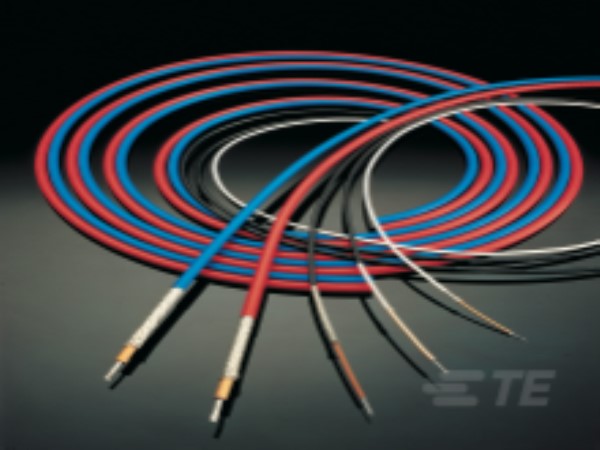

Image is representational - see mfr. specs
102833-000
TE Connectivity / Raychem Brand
7524E5114-9
Datasheet Accessories Notify Me
RoHS Compliant
Pack Packaging
Certificate of Compliance Guarantee
Description
+
7524E5114-9
Search Keywords: 102833000
SPECS
+
-
Product AttributeAttribute Value Select Attribute
-
Supplier:TE Connectivity / Raychem Brand
-
Part No:102833-000
-
Unit of Measure:Per Each
-
RoHS:Yes
-
HTS:8544200000
-
COO:US
-
ECCN:EAR99
-
Supplier Standard Pack:
1 -
Shield Material:Tin-Plated Copper
-
Shield Style:Double
-
Cable Style:Round Braided
-
Product Classification:Cable - Coaxial
-
Impedance:75 Ω
-
Dielectric Material:Rayfoam L
-
Capacitance:17.1 pF/ft
-
Conductor Material:Silver-Plated High Strength Copper
-
Jacket Color:White
-
Product Type:Cable
-
Velocity of Propagation:79%
-
Cable Dielectric Diameter:.111 in, 2.82 mm
-
Overall Outside Diameter:.183 in, 4.65 mm
-
Wire Size:24 AWG, .2047 mm²
-
Operating Temperature Range:-65 – 150 °C, -85 – 302 °F
-
Wire Diameter:.025 in, .64 mm
-
Cable Type:Cheminax
Tools/3D Models
+
-
EE ToolBox
Product Drawing - CHEMINAX 75 OHM, AWG 24, 19 STRANDS OF AWG 36, TRIAXIAL CABLE
Datasheet
Product Specification - Cable, High-Frequency and Controlled Electrical
Price Match Guarantee
We�ll meet or beat any authorized competitor�s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
625
20 Weeks
can ship
10/19/26
Price (USD)
Qty
Unit Price
625
$13.44
1,250
$7.10
1,875
$4.88
2,500 +
$4.78
Click for Quote
Log in
to unlock special pricing
