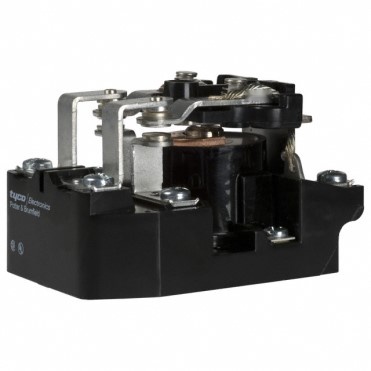

PRD-11AY0-480 by te connectivity / p-b brand
Image is representational - see manufacturer specifications

TE Connectivity / P&B Brand Authorized Distributor

PRD-11AY0-480

Power Relay 480VAC 25A DPDT(85.73x63.8x63.5)mm Chassis Mount

+ see all

View Datasheet Accessories Notify Me

RoHS Compliant
BAG Packaging
Certificate of Compliance
Description +
Power Relay 480VAC 25A DPDT(85.73x63.8x63.5)mm Chassis Mount
Product Highlights:
  • PRD Series
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 25 Amps.
  • Monostable Coil Magnetic System
  • Input Voltage = 480 VAC
Search Keywords: PRD11AY0480
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / P&B Brand
  • Part No:
    PRD-11AY0-480
  • Alias/AKA:
    3-1393127-1
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536490075
  • COO:
    CN
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    20
  • Relay Construction:
    Non-Latching
  • AC Coil Voltage:
    480 V
  • DC Coil Voltage:
    N/A
  • Contact Arrangement:
    DPDT
  • Mounting:
    N/A
  • Termination Style:
    Screw Terminal
  • Push to Test Button:
    No
  • Led Indicator:
    No
  • Operating Temperature:
    -55 to 45 °C
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is PRD-11AY0-480 RoHS compliant?
Yes, PRD-11AY0-480 is RoHS compliant.
What is the lead time for PRD-11AY0-480?
The standard lead time for PRD-11AY0-480 is approximately 25 days. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 23
Can Ship immediately
25 Weeks can ship 2/22/27
ADD TO CART
Price (USD)
Qty
Unit Price
1
$89.24
5
$74.42
10
$67.76
20
$64.86
60
$64.54
100 +
$63.88
Supplier's Standard Package
Click for Quote
Log in to unlock special pricing
