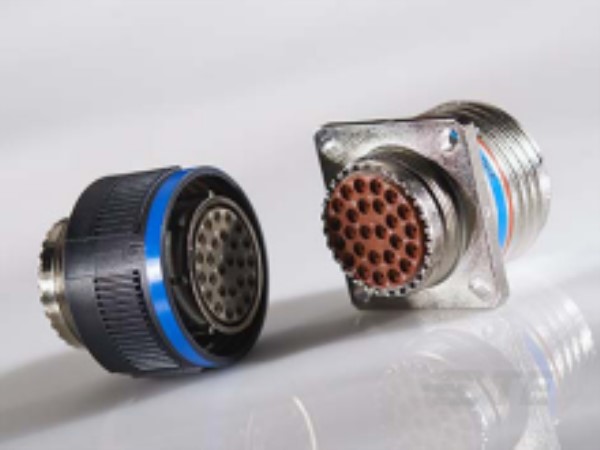

ZPF000000000090100 by te connectivity / deutsch
Image is representational - see mfr. specs

ZPF000000000090100

TE Connectivity / Deutsch

DTS 20 K 15-19 PA

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Pack Packaging
Certificate of Compliance Guarantee
Description +
DTS 20 K 15-19 PA
Search Keywords: ZPF000000000090100
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    ZPF000000000090100
  • Alias/AKA:
    DTS20K15-19PA
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694040
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Environmental Protection Type:
    Elastomer Sealed
  • Shell Type:
    Square Flange Receptacle
  • Circular Connector Type:
    Receptacle
  • Assembly Type:
    Electrical Connector
  • Alignment Keyed:
    Clocking
  • Prewired:
    No
  • Contacts Preloaded:
    No
  • Number of Power Positions:
    0
  • Reverse Gender:
    No
  • Number of Signal Positions:
    19
  • Contact Layout Arrangement:
    15 – 19
  • Circular Connector Insulation Material Type:
    Thermoset
  • Circular Connector Contact Type:
    Pin
  • Wire Size:
    20 – 24 AWG, .2 – .52 mm²
  • Contact Current Rating (Max):
    7.5 A
  • Termination Method to Wire & Cable:
    Crimp
  • Connector System:
    Wire-to-Panel
  • Hermetically Sealed:
    No
  • Number of Positions:
    19
  • Mating Retention:
    With
  • Shell Plating Material:
    Passivated Stainless Steel Firewall
  • Accessory Color:
    Natural
  • Panel Mount Feature Type:
    Square Flange
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Mating Retention Type:
    Threaded
  • Shielded:
    Yes
  • Durability Rating:
    500 Cycles
  • Mating Alignment:
    With
  • Factory Installed Backshell:
    Without
  • Mating Alignment Type:
    Keyed
  • Shell Base Material:
    Stainless Steel
  • Connector Mounting Type:
    Panel Mount
  • Keying:
    Keyway Polarization A
  • Sealable:
    Yes
  • Panel Mount Feature:
    With
  • Circular Connector Shell Size:
    D (15)
  • Connector & Contact Terminates To:
    Wire & Cable
  • Product Type:
    Connector Assembly
  • Circuit Application:
    Power, Signal & High Speed Data
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
9 Weeks can ship 8/7/26
Backorder
Price (USD)
Qty
Unit Price
13
$750.76
25
$398.79
38
$267.89
50 +
$262.53
