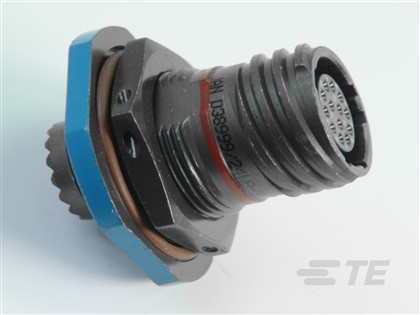

YDTS24Z23-55SNV001 by te connectivity / deutsch
Image is representational - see mfr. specs

YDTS24Z23-55SNV001

TE Connectivity / Deutsch

RECP ASSY

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
RECP ASSY
Search Keywords: YDTS24Z2355SNV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    YDTS24Z23-55SNV001
  • Alias/AKA:
    DTS24Z23-55SN[V001]
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Number of Power Positions:
    0
  • Alignment Keyed:
    Clocking
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Hermetically Sealed:
    No
  • Reverse Gender:
    No
  • Connector System:
    Cable-to-Panel
  • Mating Retention:
    With
  • Mating Alignment Type:
    Keyed
  • Shell Type:
    Jam Nut Receptacle
  • Circuit Application:
    Signal
  • Contact Current Rating (Max):
    7.5 A
  • Shell Plating Material:
    Black Zinc Nickel
  • Number of Positions:
    55
  • Wire Size:
    24 – 20 AWG, .2 – .52 mm²
  • Contact Layout Arrangement:
    23 – 55
  • Sealable:
    Yes
  • Number of Signal Positions:
    55
  • Polarization Code:
    N
  • Shielded:
    Yes
  • Circular Connector Type:
    Receptacle
  • Shell Base Material:
    Aluminum 6061-T6
  • Contacts Preloaded:
    No
  • Product Type:
    Connector Assembly
  • Connector Mounting Type:
    Panel Mount
  • Circular Connector Contact Type:
    Socket
  • Circular Connector Shell Size:
    23
  • Circular Connector Insulation Material Type:
    Hard Dielectric/Silicone
  • Connector & Contact Terminates To:
    Wire & Cable
  • Insulation Material:
    Hard Dielectric/Silicone
  • Contact Type:
    Socket
  • Shell Material:
    Aluminum 6061-T6
  • Shell Size:
    23
  • Preloaded:
    No
  • Connector Style:
    Receptacle
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
2 Weeks can ship 6/12/26
Backorder
Price (USD)
Qty
Unit Price
13
$1,334.94
25
$709.10
38
$476.33
50 +
$466.81
