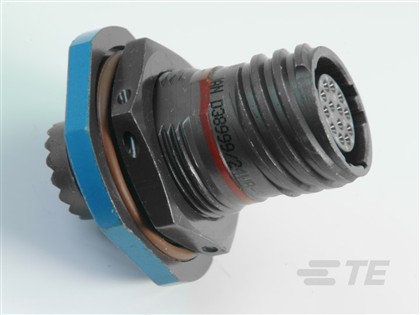

YDTS24W25-35SBV001 by te connectivity / deutsch
Image is representational - see mfr. specs

YDTS24W25-35SBV001

TE Connectivity / Deutsch

RECP ASSY

+ see all

Datasheet Accessories Notify Me

RoHS Non-Compliant
Packaging
Certificate of Compliance Guarantee
Description +
RECP ASSY
Search Keywords: YDTS24W2535SBV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    YDTS24W25-35SBV001
  • Alias/AKA:
    DTS24W25-35SB[V001]
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694040
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Shielded:
    Yes
  • Shell Type:
    Jam Nut Receptacle
  • Reverse Gender:
    No
  • Circular Connector Type:
    Receptacle
  • Hermetically Sealed:
    No
  • Number of Power Positions:
    0
  • Wire Size:
    22 – 26 AWG, .15 – .4 mm²
  • Product Type:
    Connector Assembly
  • Number of Positions:
    128
  • Contacts Preloaded:
    No
  • Shell Plating Material:
    Cadmium O.D.
  • Shell Base Material:
    Aluminum
  • Circular Connector Shell Size:
    J (25)
  • Alignment Keyed:
    Clocking
  • Number of Signal Positions:
    128
  • Mating Alignment Type:
    Polarization
  • Sealable:
    Yes
  • Connector & Contact Terminates To:
    Wire & Cable
  • Connector System:
    Wire-to-Wire
  • Polarization Code:
    Normal
  • Contact Current Rating (Max):
    5 A
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Circular Connector Contact Type:
    Pin/Socket
  • Centerline (Pitch):
    .1 in, .06 mm
  • Circuit Application:
    Power & Signal
  • Mating Retention:
    Without
  • Connector Mounting Type:
    Panel Mount
  • Circular Connector Insulation Material Type:
    Hard Dielectric/Silicone
  • Contact Layout Arrangement:
    Circular
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
2 Weeks can ship 6/12/26
Backorder
Price (USD)
Qty
Unit Price
13
$1,766.57
25
$938.37
38
$630.35
50 +
$617.74
Click for Quote
