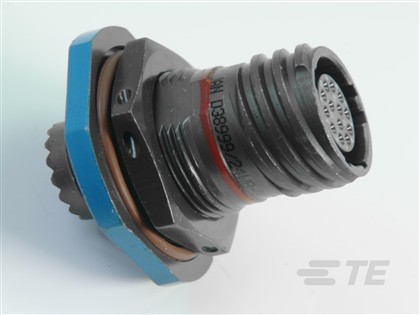

YDTS24W13-35PAV001 by te connectivity / deutsch
Image is representational - see mfr. specs

YDTS24W13-35PAV001

TE Connectivity / Deutsch

RECP ASSY

+ see all

Datasheet Accessories Notify Me

RoHS Non-Compliant
Pack Packaging
Certificate of Compliance Guarantee
Description +
RECP ASSY
Search Keywords: YDTS24W1335PAV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    YDTS24W13-35PAV001
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Connector System:
    Cable-to-Panel
  • Sealable:
    Yes
  • Mating Retention:
    With
  • Operating Temperature Range:
    -65 – 175 °C, -85 – 347 °F
  • Circuit Application:
    Signal
  • Number of Signal Positions:
    22
  • Connector Mounting Type:
    Panel Mount
  • Number of Positions:
    22
  • Mating Alignment Type:
    Keyed
  • Reverse Gender:
    No
  • Circular Connector Shell Size:
    13
  • Contact Layout Arrangement:
    13 – 35
  • Number of Power Positions:
    0
  • Contact Current Rating (Max):
    5 A
  • Shell Base Material:
    Aluminum
  • Polarization Code:
    A
  • Shell Type:
    Jam Nut Receptacle
  • Wire Size:
    28 – 22 AWG, .08 – .33 mm²
  • Shell Plating Material:
    Cadmium O.D.
  • Hermetically Sealed:
    No
  • Alignment Keyed:
    Clocking
  • Product Type:
    Connector Assembly
  • Connector & Contact Terminates To:
    Wire & Cable
  • Circular Connector Type:
    Receptacle
  • Contacts Preloaded:
    Yes
  • Circular Connector Insulation Material Type:
    Hard Dielectric/Silicone
  • Circular Connector Contact Type:
    Pin
  • Connector Style:
    Receptacle
  • Shell Size:
    13
  • Insulation Material:
    Hard Dielectric/Silicone
  • Shell Material:
    Aluminum
  • Contact Type:
    Pin
  • Preloaded:
    Yes
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
14
65 Weeks can ship 8/27/27
Backorder
Price (USD)
Qty
Unit Price
14
$590.73
27
$323.32
41
$219.64
54 +
$215.25
