YDTS24W09-35PCV001 by te connectivity / deutsch

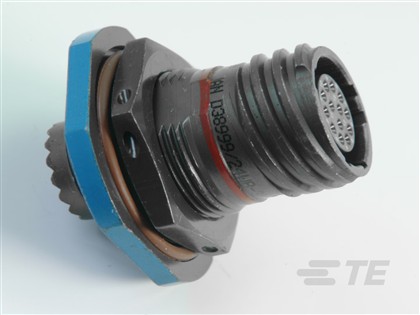

Image is representational - see mfr. specs

YDTS24W09-35PCV001

TE Connectivity / Deutsch

RECP ASSY

+ see all

Datasheet Accessories Notify Me

RoHS Non-Compliant
Packaging
Certificate of Compliance Guarantee
Description +
RECP ASSY
Search Keywords: YDTS24W0935PCV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    YDTS24W09-35PCV001
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694040
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Contact Current Rating (Max):
    5 A
  • Wire Size:
    28 – 22 AWG, .08 – .33 mm²
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Mating Alignment Type:
    Keyed
  • Polarization Code:
    C
  • Sealable:
    Yes
  • Shell Plating Material:
    Cadmium O.D.
  • Connector System:
    Cable-to-Panel
  • Mating Retention:
    With
  • Hermetically Sealed:
    No
  • Contact Layout Arrangement:
    9 – 35
  • Number of Power Positions:
    0
  • Number of Signal Positions:
    6
  • Shielded:
    No
  • Shell Type:
    Jam Nut Receptacle
  • Circuit Application:
    Signal
  • Number of Positions:
    6
  • Alignment Keyed:
    Clocking
  • Connector Mounting Type:
    Panel Mount
  • Contacts Preloaded:
    Yes
  • Shell Base Material:
    Aluminum
  • Product Type:
    Connector Assembly
  • Circular Connector Shell Size:
    9
  • Circular Connector Contact Type:
    Pin
  • Connector & Contact Terminates To:
    Wire & Cable
  • Circular Connector Type:
    Receptacle
  • Circular Connector Insulation Material Type:
    Hard Dielectric/Silicone
  • Shell Material:
    Aluminum
  • Insulation Material:
    Hard Dielectric/Silicone
  • Contact Type:
    Pin
  • Preloaded:
    Yes
  • Connector Style:
    Receptacle
  • Shell Size:
    9
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
9 Weeks can ship 7/27/26
Backorder
Price (USD)
Qty
Unit Price
13
$776.12
25
$412.26
38
$276.94
50 +
$271.40
Click for Quote
