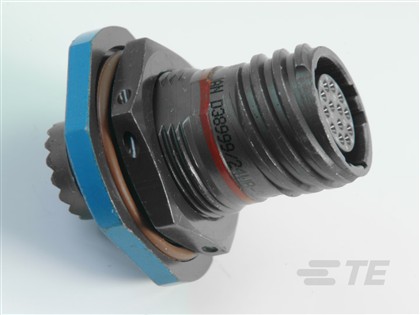

YDTS24F23-21SAV001 by te connectivity / deutsch
Image is representational - see mfr. specs

YDTS24F23-21SAV001

TE Connectivity / Deutsch

RECP ASSY

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance Guarantee
Description +
RECP ASSY
Search Keywords: YDTS24F2321SAV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    YDTS24F23-21SAV001
  • Alias/AKA:
    DTS24F23-21SA[V001]
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694040
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Shell Plating Material:
    Electroless Nickel
  • Contact Current Rating (Max):
    13 A
  • Circular Connector Type:
    Receptacle
  • Hermetically Sealed:
    No
  • Reverse Gender:
    No
  • Contact Layout Arrangement:
    Circular
  • Contacts Preloaded:
    No
  • Number of Power Positions:
    0
  • Shell Type:
    Jam Nut Receptacle
  • Mating Retention:
    Without
  • Circular Connector Insulation Material Type:
    Hard Dielectric/Silicone
  • Polarization Code:
    Normal
  • Circuit Application:
    Power & Signal
  • Alignment Keyed:
    Clocking
  • Number of Signal Positions:
    21
  • Mating Alignment Type:
    Polarization
  • Connector System:
    Wire-to-Wire
  • Circular Connector Shell Size:
    H (23)
  • Shell Base Material:
    Aluminum
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Product Type:
    Connector Assembly
  • Sealable:
    Yes
  • Connector & Contact Terminates To:
    Wire & Cable
  • Shielded:
    Yes
  • Circular Connector Contact Type:
    Pin/Socket
  • Number of Positions:
    21
  • Centerline (Pitch):
    .1 in, .06 mm
  • Connector Mounting Type:
    Panel Mount
  • Wire Size:
    16 – 20 AWG, .61 – 1.21 mm²
Tools/3D Models +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
2 Weeks can ship 6/22/26
Backorder
Price (USD)
Qty
Unit Price
13
$1,006.08
25
$534.41
38
$358.99
50 +
$351.81
