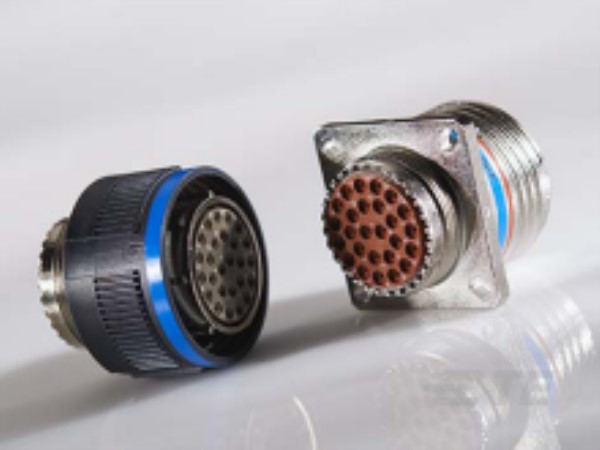

DTS26S23-53SB by te connectivity / deutsch
Image is representational - see mfr. specs

DTS26S23-53SB

TE Connectivity / Deutsch

DTS 26 S 23-53 SB

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Pack Packaging
Certificate of Compliance Guarantee
Description +
DTS 26 S 23-53 SB
Search Keywords: DTS26S2353SB
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS26S23-53SB
  • Alias/AKA:
    ZPF000000000017205
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    FR
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Polarization Code:
    B
  • Circuit Application:
    Signal
  • Environmental Protection Type:
    Elastomer Sealed
  • Number of Signal Positions:
    53
  • Reverse Gender:
    No
  • Number of Power Positions:
    0
  • Shielded:
    Yes
  • Product Type:
    Connector
  • Connector Mounting Type:
    Panel
  • Shell Material:
    Stainless Steel Nickel Plated
  • Termination Method to Wire & Cable:
    Crimp
  • Connector Style:
    Plug
  • Insulation Material:
    Hard Dielectric/Silicone
  • Connector System:
    Cable-to-Panel
  • Mating Alignment:
    With
  • Preloaded:
    No
  • Assembly Type:
    Electrical Connector
  • Shell Size:
    23
  • Contact Layout Arrangement:
    23 – 53
  • Keying:
    Keyway Polarization B
  • Wire Size:
    20 – 24 AWG, .2 – .52 mm²
  • Shell Type:
    Plug
  • Operating Temperature Range:
    -65 – 200 °C
  • Hermetically Sealed:
    No
  • Factory Installed Backshell:
    Without
  • Durability Rating:
    500 Cycles
  • Accessory Color:
    Natural
  • Shell Plating Material:
    Electrodeposited Nickel
  • Sealable:
    Yes
  • Contact Current Rating (Max):
    7.5 A
  • Flange:
    Jam Nut Flange
  • Contact Type:
    Female Contact
  • Mating Alignment Type:
    Keyed
  • Mating Retention:
    With
  • Mating Retention Type:
    Threaded
  • Alignment Keyed:
    Clocking
  • Prewired:
    No
  • Number of Positions:
    53
  • Wire/Cable Size:
    24 – 20 AWG, .2 – .52 mm²
  • Shell Base Material:
    Stainless Steel
  • Circular Connector Shell Size:
    H (23)
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
26 Weeks can ship 11/23/26
Backorder
Price (USD)
Qty
Unit Price
13
$1,483.67
25
$788.10
38
$529.40
50 +
$518.81
