DTS26S13-98PN by te connectivity / deutsch

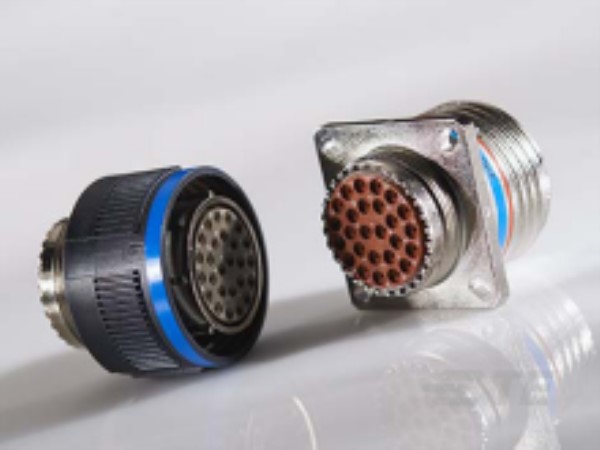

Image is representational - see mfr. specs

DTS26S13-98PN

TE Connectivity / Deutsch

DTS 26 S 13-98 PN

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Pack Packaging
Certificate of Compliance Guarantee
Description +
DTS 26 S 13-98 PN
Search Keywords: DTS26S1398PN
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS26S13-98PN
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    US
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Shell Plating Material:
    Electrodeposited Nickel
  • Alignment Keyed:
    Clocking
  • Contact Layout Arrangement:
    13 – 98
  • Number of Positions:
    10
  • Prewired:
    No
  • Mating Retention Type:
    Threaded
  • Shell Type:
    Plug
  • Sealable:
    Yes
  • Shell Size:
    13
  • Durability Rating:
    500 Cycles
  • Accessory Color:
    Natural
  • Contact Current Rating (Max):
    7.5 A
  • Termination Method to Wire & Cable:
    Crimp
  • Keying:
    Keyway Polarization N
  • Insulation Material:
    Hard Dielectric/Silicone
  • Environmental Protection Type:
    Elastomer Sealed
  • Mating Alignment:
    With
  • Circuit Application:
    Signal
  • Assembly Type:
    Electrical Connector
  • Shell Material:
    Stainless Steel Nickel Plated
  • Shielded:
    Yes
  • Number of Power Positions:
    0
  • Mating Retention:
    With
  • Mating Alignment Type:
    Keyed
  • Product Type:
    Connector
  • Connector Style:
    Plug
  • Connector System:
    Cable-to-Panel
  • Contact Type:
    Male Contact
  • Operating Temperature Range:
    -65 – 200 °C
  • Polarization Code:
    N
  • Wire Size:
    20 – 24 AWG, .2 – .52 mm²
  • Hermetically Sealed:
    No
  • Wire/Cable Size:
    24 – 20 AWG, .2 – .52 mm²
  • Flange:
    Jam Nut Flange
  • Connector Mounting Type:
    Panel
  • Factory Installed Backshell:
    Without
  • Number of Signal Positions:
    10
  • Preloaded:
    No
  • Reverse Gender:
    No
  • Circular Connector Shell Size:
    C (13)
  • Shell Base Material:
    Stainless Steel
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
24 Weeks can ship 11/6/26
Backorder
Price (USD)
Qty
Unit Price
13
$809.85
25
$430.18
38
$288.97
50 +
$283.19
