DTS24Z25-43PN[V001] by te connectivity / deutsch

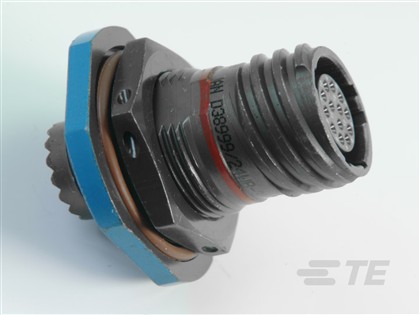

Image is representational - see mfr. specs

DTS24Z25-43PN[V001]

TE Connectivity / Deutsch

DTS JAM NUT RECEPTACLE ENVELOPE

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
DTS JAM NUT RECEPTACLE ENVELOPE
Search Keywords: DTS24Z2543PNV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS24Z25-43PN[V001]
  • Alias/AKA:
    YDTS24Z25-43PNV001
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Circuit Application:
    Power & Signal
  • Number of Positions:
    43
  • Number of Power Positions:
    20
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Shell Material:
    Aluminum 6061-T6
  • Alignment Keyed:
    Clocking
  • Mating Alignment Type:
    Keyed
  • Shell Plating Material:
    Black Zinc Nickel
  • Wire/Cable Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Insulation Material:
    Hard Dielectric/Silicone
  • Contact Current Rating (Max):
    13 A
  • Polarization Code:
    N
  • Product Type:
    Connector
  • Connector Style:
    Receptacle
  • Connector System:
    Cable-to-Panel
  • Number of Signal Positions:
    23
  • Wire Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Hermetically Sealed:
    No
  • Reverse Gender:
    No
  • Mating Retention:
    With
  • Shielded:
    Yes
  • Preloaded:
    No
  • Contact Type:
    Pin
  • Connector Mounting Type:
    Panel
  • Shell Size:
    25
  • Sealable:
    Yes
  • Shell Type:
    Jam Nut Receptacle
  • Contact Layout Arrangement:
    25 – 43
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
19
2 Weeks can ship 6/10/26
Backorder
Price (USD)
Qty
Unit Price
19
$1,414.35
38
$722.38
57
$491.73
75 +
$481.89
