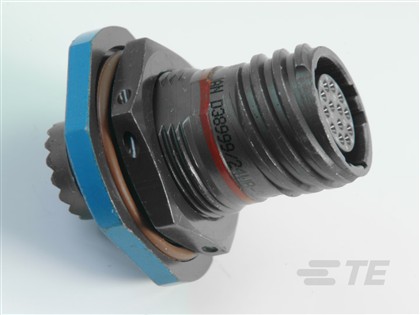

DTS24Z15-19SN[V001] by te connectivity / deutsch
Image is representational - see mfr. specs

DTS24Z15-19SN[V001]

TE Connectivity / Deutsch

DTS JAM NUT RECEPTACLE ENVELOPE

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
DTS JAM NUT RECEPTACLE ENVELOPE
Search Keywords: DTS24Z1519SNV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS24Z15-19SN[V001]
  • Alias/AKA:
    YDTS24Z15-19SNV001
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Preloaded:
    No
  • Shielded:
    Yes
  • Sealable:
    Yes
  • Product Type:
    Connector
  • Mating Retention:
    With
  • Shell Type:
    Jam Nut Receptacle
  • Shell Size:
    15
  • Wire/Cable Size:
    24 – 20 AWG, .2 – .52 mm²
  • Polarization Code:
    N
  • Contact Layout Arrangement:
    15 – 19
  • Connector Style:
    Receptacle
  • Reverse Gender:
    No
  • Mating Alignment Type:
    Keyed
  • Number of Signal Positions:
    19
  • Circuit Application:
    Signal
  • Connector Mounting Type:
    Panel
  • Contact Current Rating (Max):
    7.5 A
  • Number of Power Positions:
    0
  • Hermetically Sealed:
    No
  • Contact Type:
    Socket
  • Wire Size:
    24 – 20 AWG, .2 – .52 mm²
  • Insulation Material:
    Hard Dielectric/Silicone
  • Connector System:
    Cable-to-Panel
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Alignment Keyed:
    Clocking
  • Number of Positions:
    19
  • Shell Plating Material:
    Black Zinc Nickel
  • Shell Material:
    Aluminum 6061-T6
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
14
65 Weeks can ship 8/27/27
Backorder
Price (USD)
Qty
Unit Price
14
$798.36
27
$422.87
40
$291.44
53 +
$285.61
Click for Quote
