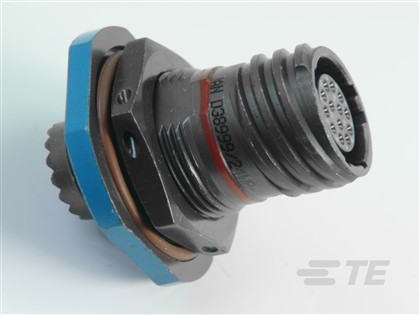

DTS24Z11-99SN[V001] by te connectivity / deutsch
Image is representational - see mfr. specs

DTS24Z11-99SN[V001]

TE Connectivity / Deutsch

DTS JAM NUT RECEPTACLE ENVELOPE

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance Guarantee
Description +
DTS JAM NUT RECEPTACLE ENVELOPE
Search Keywords: DTS24Z1199SNV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS24Z11-99SN[V001]
  • Alias/AKA:
    YDTS24Z11-99SNV001
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Wire Size:
    24 – 20 AWG, .2 – .52 mm²
  • Insulation Material:
    Hard Dielectric/Silicone
  • Shell Plating Material:
    Black Zinc Nickel
  • Number of Signal Positions:
    7
  • Contact Layout Arrangement:
    11 – 99
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Wire/Cable Size:
    24 – 20 AWG, .2 – .52 mm²
  • Alignment Keyed:
    Clocking
  • Shell Size:
    11
  • Polarization Code:
    N
  • Connector Style:
    Receptacle
  • Mating Alignment Type:
    Keyed
  • Preloaded:
    No
  • Connector System:
    Cable-to-Panel
  • Contact Current Rating (Max):
    7.5 A
  • Shell Material:
    Aluminum 6061-T6
  • Sealable:
    Yes
  • Number of Positions:
    7
  • Contact Type:
    Socket
  • Product Type:
    Connector
  • Hermetically Sealed:
    No
  • Shielded:
    Yes
  • Contact Layout:
    11 – 99
  • Circuit Application:
    Signal
  • Connector Mounting Type:
    Panel
  • Reverse Gender:
    No
  • Number of Power Positions:
    0
  • Shell Type:
    Jam Nut Receptacle
  • Mating Retention:
    With
  • Shell Base Material:
    Aluminum 6061-T6
  • Circular Connector Shell Size:
    11
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
4
65 Weeks can ship 8/27/27
Backorder
Price (USD)
Qty
Unit Price
4
$1,961.54
7
$1,183.15
11
$776.69
14 +
$761.16
