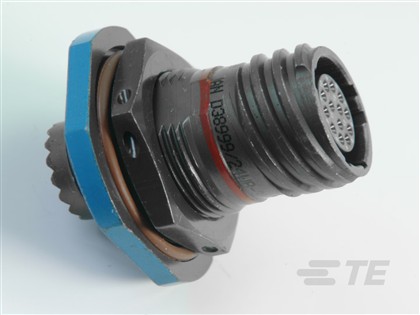

DTS24W25-43SN[V001] by te connectivity / deutsch
Image is representational - see mfr. specs

DTS24W25-43SN[V001]

TE Connectivity / Deutsch

DTS JAM NUT RECEPTACLE ENVELOPE

+ see all

Datasheet Accessories Notify Me

RoHS Non-Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
DTS JAM NUT RECEPTACLE ENVELOPE
Search Keywords: DTS24W2543SNV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS24W25-43SN[V001]
  • Alias/AKA:
    YDTS24W25-43SNV001
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Mating Alignment Type:
    Keyed
  • Wire Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Connector Style:
    Receptacle
  • Number of Signal Positions:
    23
  • Sealable:
    Yes
  • Preloaded:
    No
  • Circuit Application:
    Power & Signal
  • Mating Retention:
    With
  • Connector System:
    Cable-to-Panel
  • Product Type:
    Connector
  • Number of Positions:
    43
  • Polarization Code:
    N
  • Shielded:
    Yes
  • Shell Type:
    Jam Nut Receptacle
  • Insulation Material:
    Hard Dielectric/Silicone
  • Contact Current Rating (Max):
    13 A
  • Number of Power Positions:
    20
  • Shell Size:
    25
  • Contact Type:
    Socket
  • Reverse Gender:
    No
  • Hermetically Sealed:
    No
  • Wire/Cable Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Alignment Keyed:
    Clocking
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Connector Mounting Type:
    Panel
  • Shell Plating Material:
    Cadmium, O.D.
  • Contact Layout Arrangement:
    25 – 43
  • Shell Material:
    Aluminum 6061-T6
  • Circular Connector Shell Size:
    25
  • Shell Base Material:
    Aluminum 6061-T6
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
20
65 Weeks can ship 8/30/27
Backorder
Price (USD)
Qty
Unit Price
20
$1,057.97
40
$540.36
60
$367.82
79 +
$360.47
