DTS24W25-04SA[V001] by te connectivity / deutsch
Image is representational - see mfr. specs

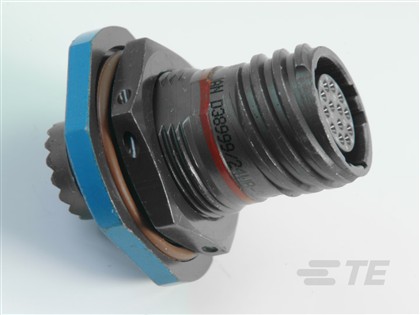

DTS24W25-04SA[V001]

TE Connectivity / Deutsch

DTS JAM NUT RECEPTACLE ENVELOPE

+ see all

Datasheet Accessories Notify Me

RoHS Non-Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
DTS JAM NUT RECEPTACLE ENVELOPE
Search Keywords: DTS24W2504SAV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS24W25-04SA[V001]
  • Alias/AKA:
    YDTS24W25-04SAV001
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Contact Type:
    Socket
  • Panel Thickness:
    .062 – .126 in, 1.58 – 3.2 mm
  • Shell Plating Material:
    Cadmium, O.D.
  • Environmental Protection Type:
    Elastomer Sealed
  • Operating Voltage:
    600 VAC, 850 VDC
  • Hermetically Sealed:
    No
  • Entry Style:
    Rear Insertion
  • Alignment Keyed:
    Clocking
  • Flange:
    Jam Nut Flange
  • Keying & Polarized Position Locations:
    A
  • Feedthrough Type:
    No
  • Wire/Cable Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Panel Mount Feature Type:
    Jam Nut
  • Voltage:
    1800 Vrms
  • Mating Alignment Type:
    Keyed
  • Connector System:
    Cable-to-Panel
  • Reverse Gender:
    No
  • Environmental Protection:
    Yes
  • Mating Retention:
    With
  • Shell Type:
    Jam Nut Receptacle
  • Contact Quantity (Size 20):
    48
  • Preloaded:
    No
  • Panel Mount Feature:
    With
  • Polarization Code:
    A
  • Peripheral Seal Material:
    Silicone
  • Sealable:
    Yes
  • Circuit Application:
    Power & Signal
  • Connector Mounting Type:
    Panel
  • Factory Installed Backshell:
    No
  • Number of Positions:
    56
  • Contact Quantity (Size 16):
    8
  • Durability Rating:
    500 Cycles
  • Shell Size:
    25
  • Assembly Length:
    1.28 in, 32.5 mm
  • Contact Layout Arrangement:
    25 – 4
  • Number of Power Positions:
    8
  • Contact Current Rating (Max):
    13 A
  • Product Type:
    Connector
  • Shielded:
    Yes
  • O-Ring Material:
    Silicone
  • Keying:
    Keyway Polarization A
  • Weight:
    66.7 g, .1472 lb
  • Assembly Type:
    Electrical Connector
  • Mating Retention Type:
    Triple Start Threaded
  • Position Keyed:
    A
  • Fluid Resistance:
    Yes
  • Position Locations Omitted:
    All
  • Shell Material:
    Aluminum 6061-T6
  • Packaging Quantity:
    1
  • Wire Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Connector Style:
    Receptacle
  • Fluid Type:
    Coolanol 25 , M2-V , MIL-DTL-5624 (JP-4,JP-5) , MIL-DTL-83133 (JP-8) , MIL-PRF-23699 , MIL-PRF-5606 , MIL-PRF-7808 , SEA-AMS1424 Type I
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Insulation Material:
    Hard Dielectric/Silicone
  • Number of Signal Positions:
    48
  • Shell Base Material:
    Aluminum 6061-T6
  • Circular Connector Shell Size:
    25
