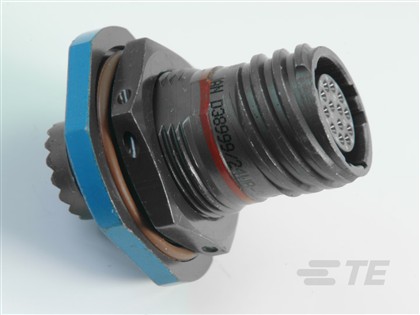

DTS24W17-99SN[V001] by te connectivity / deutsch
Image is representational - see mfr. specs

DTS24W17-99SN[V001]

TE Connectivity / Deutsch

DTS JAM NUT RECEPTACLE ENVELOPE

+ see all

Datasheet Accessories Notify Me

RoHS Non-Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
DTS JAM NUT RECEPTACLE ENVELOPE
Search Keywords: DTS24W1799SNV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS24W17-99SN[V001]
  • Alias/AKA:
    YDTS24W17-99SNV001
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Contact Quantity (Size 20):
    21
  • Contact Layout Arrangement:
    17 – 99
  • Factory Installed Backshell:
    No
  • Packaging Quantity:
    1
  • Circuit Application:
    Power & Signal
  • Weight:
    38 g, .0839 lb
  • Connector Style:
    Receptacle
  • Flange:
    Jam Nut Flange
  • Panel Mount Feature:
    With
  • Fluid Type:
    Coolanol 25 , M2-V , MIL-DTL-5624 (JP-4,JP-5) , MIL-DTL-83133 (JP-8) , MIL-PRF-23699 , MIL-PRF-5606 , MIL-PRF-7808 , SEA-AMS1424 Type I
  • Number of Signal Positions:
    21
  • Contact Current Rating (Max):
    13 A
  • Keying & Polarized Position Locations:
    N
  • Assembly Type:
    Electrical Connector
  • Position Keyed:
    N
  • Keying:
    Keyway Polarization N
  • Mating Retention Type:
    Triple Start Threaded
  • Reverse Gender:
    No
  • Panel Thickness:
    .062 – .126 in, 1.58 – 3.2 mm
  • Mating Alignment Type:
    Keyed
  • Shell Material:
    Aluminum 6061-T6
  • Voltage:
    1800 Vrms
  • Environmental Protection Type:
    Elastomer Sealed
  • Feedthrough Type:
    No
  • Number of Positions:
    23
  • Wire/Cable Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Durability Rating:
    500 Cycles
  • O-Ring Material:
    Silicone
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Position Locations Omitted:
    All
  • Sealable:
    Yes
  • Hermetically Sealed:
    No
  • Entry Style:
    Rear Insertion
  • Polarization Code:
    N
  • Peripheral Seal Material:
    Silicone
  • Fluid Resistance:
    Yes
  • Assembly Length:
    1.28 in, 32.5 mm
  • Contact Quantity (Size 16):
    2
  • Alignment Keyed:
    Clocking
  • Operating Voltage:
    600 VAC, 850 VDC
  • Contact Type:
    Socket
  • Environmental Protection:
    Yes
  • Connector System:
    Cable-to-Panel
  • Preloaded:
    No
  • Mating Retention:
    With
  • Connector Mounting Type:
    Panel
  • Shell Plating Material:
    Cadmium, O.D.
  • Insulation Material:
    Hard Dielectric/Silicone
  • Product Type:
    Connector
  • Shell Type:
    Jam Nut Receptacle
  • Shielded:
    Yes
  • Wire Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Shell Size:
    17
  • Panel Mount Feature Type:
    Jam Nut
  • Number of Power Positions:
    2
Tools/3D Models +
Product Guides +
