DTS24S25-04PB by te connectivity / deutsch

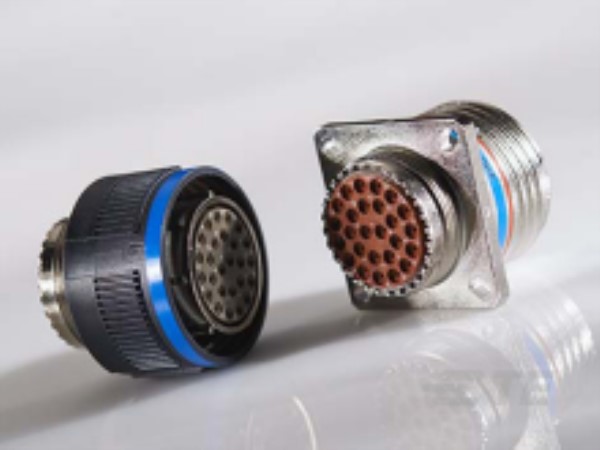

Image is representational - see mfr. specs

DTS24S25-04PB

TE Connectivity / Deutsch

DTS 24 S 25-04 PB

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
BAG Packaging
Certificate of Compliance Guarantee
Description +
DTS 24 S 25-04 PB
Search Keywords: DTS24S2504PB
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS24S25-04PB
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    US
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Environmental Protection Type:
    Elastomer Sealed
  • Number of Signal Positions:
    48
  • Number of Positions:
    56
  • Panel Mount Feature Type:
    Jam Nut
  • Polarization Code:
    B
  • Alignment Keyed:
    Clocking
  • Prewired:
    No
  • Reverse Gender:
    No
  • Contact Type:
    Male Contact
  • Connector Mounting Type:
    Panel
  • Connector System:
    Cable-to-Panel
  • Hermetically Sealed:
    No
  • Wire/Cable Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Product Type:
    Connector
  • Shell Size:
    25
  • Number of Power Positions:
    8
  • Factory Installed Backshell:
    Without
  • Operating Temperature Range:
    -65 – 200 °C
  • Shell Plating Material:
    Electrodeposited Nickel
  • Sealable:
    Yes
  • Preloaded:
    No
  • Panel Mount Feature:
    With
  • Termination Method to Wire & Cable:
    Crimp
  • Accessory Color:
    Natural
  • Mating Alignment:
    With
  • Mating Retention:
    With
  • Durability Rating:
    500 Cycles
  • Assembly Type:
    Electrical Connector
  • Mating Retention Type:
    Threaded
  • Shell Material:
    Stainless Steel Nickel Plated
  • Flange:
    Jam Nut Flange
  • Shell Type:
    Single Hole Mounting Receptacle
  • Keying:
    Keyway Polarization B
  • Contact Layout Arrangement:
    25 – 4
  • Connector Style:
    Receptacle
  • Mating Alignment Type:
    Keyed
  • Contact Current Rating (Max):
    13 A
  • Wire Size:
    16 – 24 AWG, .2 – 1.31 mm²
  • Insulation Material:
    Hard Dielectric/Silicone
  • Shielded:
    Yes
  • Circuit Application:
    Power & Signal
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
26 Weeks can ship 11/18/26
Backorder
Price (USD)
Qty
Unit Price
13
$1,203.78
25
$639.43
38
$429.53
50 +
