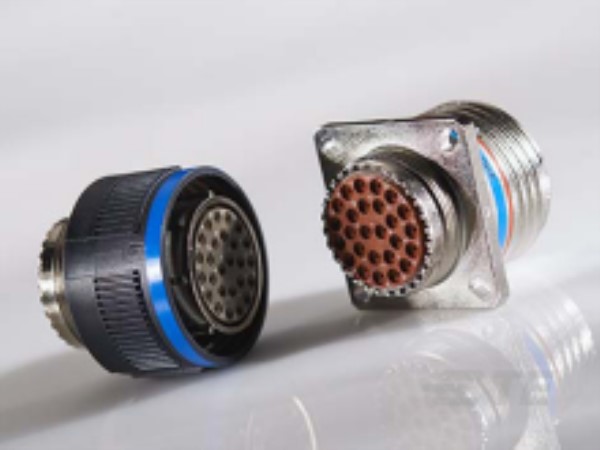

DTS24K25-04SN by te connectivity / deutsch
Image is representational - see mfr. specs

DTS24K25-04SN

TE Connectivity / Deutsch

DTS 24 K 25-04 SN

+ see all

Veri Sayfası Donatılar Notify Me

RoHS Compliant
Pack Paketleme
Certificate of Compliance Guarantee
tanım +
DTS 24 K 25-04 SN
Search Keywords: DTS24K2504SN
şartname +
  • Product Attribute
    Attribute Value Select Attribute
  • satıcı:
    TE Connectivity / Deutsch
  • Parça Numarası:
    DTS24K25-04SN
  • Ölçü Birimi:
    Per Each
  • RoHS :
    Yes
  • HTS:
    8536694040
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Accessory Color:
    Natural
  • Mating Retention Type:
    Threaded
  • Panel Mount Feature:
    With
  • Durability Rating:
    500 Cycles
  • Contact Layout Arrangement:
    25 – 4
  • Shell Material:
    Stainless Steel
  • Wire Size:
    16 – 24 AWG, .2 – 1.31 mm²
  • Mating Alignment:
    With
  • Shell Type:
    Single Hole Mounting Receptacle
  • Sealable:
    Yes
  • Shell Plating Material:
    Passivated Stainless Steel Firewall
  • Product Type:
    Connector
  • Keying:
    Keyway Polarization N
  • Contact Current Rating (Max):
    13 A
  • Insulation Material:
    Hard Dielectric/Silicone
  • Circuit Application:
    Power & Signal
  • Alignment Keyed:
    Clocking
  • Termination Method to Wire & Cable:
    Crimp
  • Environmental Protection Type:
    Elastomer Sealed
  • Number of Power Positions:
    8
  • Connector Style:
    Receptacle
  • Polarization Code:
    N
  • Number of Signal Positions:
    48
  • Flange:
    Jam Nut Flange
  • Assembly Type:
    Electrical Connector
  • Hermetically Sealed:
    No
  • Mating Alignment Type:
    Keyed
  • Shielded:
    Yes
  • Preloaded:
    No
  • Wire/Cable Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Connector System:
    Cable-to-Panel
  • Number of Positions:
    56
  • Prewired:
    No
  • Reverse Gender:
    No
  • Panel Mount Feature Type:
    Jam Nut
  • Operating Temperature Range:
    -65 – 200 °C
  • Mating Retention:
    With
  • Shell Size:
    25
  • Contact Type:
    Female Contact
  • Connector Mounting Type:
    Panel
  • Factory Installed Backshell:
    Without
  • Shell Base Material:
    Stainless Steel
  • Circular Connector Shell Size:
    J (25)
Tools/3D Models +
kaynaklar +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
Stokta: 0
Stokta Olmayan Miktar için Minimum Sipariş Miktarı:
13
9 Weeks Gemi olabilir 7.23.26
Sipariş Bakiyesi
PRICE (USD)
MİKTAR
Unit Price
13
$1,905.86
25
$1,012.36
38
$680.05
50 +
$666.45
