DTS24F19-35PN[V001] by te connectivity / deutsch

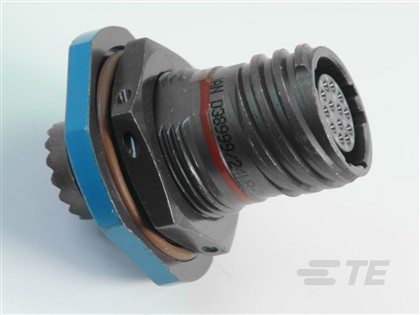

Image is representational - see mfr. specs

DTS24F19-35PN[V001]

TE Connectivity / Deutsch

DTS JAM NUT RECEPTACLE ENVELOPE

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
DTS JAM NUT RECEPTACLE ENVELOPE
Search Keywords: DTS24F1935PNV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS24F19-35PN[V001]
  • Alias/AKA:
    YDTS24F19-35PNV001
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Alignment Keyed:
    Clocking
  • Reverse Gender:
    No
  • Panel Mount Retention Type:
    Jam Nut
  • Entry Style:
    Rear Insertion
  • Position Locations Omitted:
    All
  • Environmental Protection Type:
    Elastomer Sealed
  • Insulation Material:
    Hard Dielectric/Silicone
  • Panel Mount Retention:
    With
  • Operating Voltage:
    400 VAC, 550 VDC
  • Panel Thickness:
    .062 – .126 in, 1.58 – 3.2 mm
  • Weight:
    40.2 g, .0887 lb
  • Durability Rating:
    500 Cycles
  • Shell Type:
    Jam Nut Receptacle
  • Polarization Code:
    N
  • Feedthrough Type:
    No
  • Number of Power Positions:
    0
  • Panel Mount Feature Type:
    Jam Nut
  • Flange:
    Jam Nut Flange
  • Accepts Wire Insulation Diameter Range:
    .03 – .054 in, .76 – 1.37 mm
  • Shell Plating Material:
    Electroless Nickel
  • Packaging Quantity:
    1
  • Positions Unloaded:
    All
  • Number of Signal Positions:
    66
  • Circuit Application:
    Signal
  • Panel Mount Feature:
    With
  • Shielded:
    Yes
  • O-Ring Material:
    Silicone
  • Contact Layout:
    19 – 35
  • Connector Mounting Type:
    Panel
  • Peripheral Seal Material:
    Silicone
  • Mating Retention Type:
    Triple Start Threaded
  • Position Keyed:
    N
  • Voltage:
    1300 Vrms
  • Sealable:
    Yes
  • Contact Type:
    Pin
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Contact Current Rating (Max):
    5 A
  • Factory Installed Backshell:
    No
  • Wire/Cable Size:
    28 – 22 AWG, .08 – .33 mm²
  • Environmental Protection:
    Yes
  • Hermetically Sealed:
    No
  • Keying:
    Keyway Polarization N
  • Contact Layout Arrangement:
    19 – 35
  • Product Type:
    Connector
  • Keying & Polarized Position Locations:
    N
  • Fluid Resistance:
    Yes
  • Number of Positions:
    66
  • Shell Size:
    19
  • Shell Material:
    Aluminum 6061-T6
  • Preloaded:
    No
  • Fluid Type:
    Coolanol 25 , M2-V , MIL-DTL-5624 (JP-4,JP-5) , MIL-DTL-83133 (JP-8) , MIL-PRF-23699 , MIL-PRF-5606 , MIL-PRF-7808 , SEA-AMS1424 Type I
  • Connector System:
    Cable-to-Panel
  • Mating Retention:
    With
  • Assembly Type:
    Electrical Connector
  • Connector Style:
    Receptacle
  • Contact Quantity (Size 22D):
    66
  • Assembly Length:
    1.28 in, 32.5 mm
  • Wire Size:
    28 – 22 AWG, .08 – .33 mm²
  • Mating Alignment Type:
    Keyed
  • Circular Connector Shell Size:
    19
  • Shell Base Material:
    Aluminum 6061-T6
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
65 Weeks can ship 8/23/27
Backorder
Price (USD)
Qty
Unit Price
13
$906.32
25
$481.42
38
$323.39
50 +
$316.93
